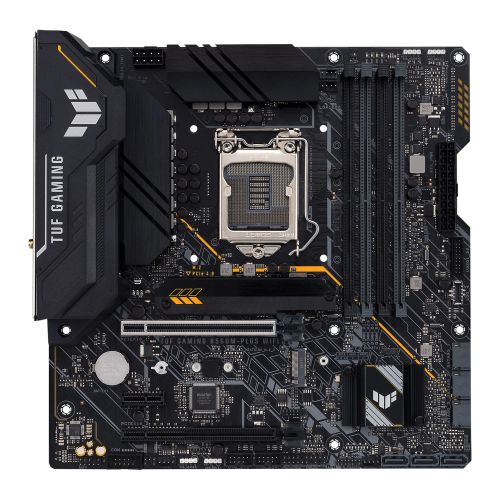

zero-2228-Asus TUF GAMING B560M-PLUS WIFI

Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB

• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
• Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery
• Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Next-gen connectivity: PCIe 4.0, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 support
• Made for online gaming: Intel Wi-Fi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Two-way AI Noise-Cancelation: Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences
• MyASUS: Offer a variety of support features such as helping to contact the customer service center, optimize networking performance and collaborate with your mobile phone through Link to MyASUS.

Introducing the ASUS TUF GAMING B560M-PLUS WIFI Motherboard ASUS has created a powerful gaming motherboard that is sure to please even the most avid PC gamers. The ASUS TUF GAMING B560M-PLUS WIFI is a micro-ATX motherboard that is powered by the Intel B560 chipset and supports Intel's 1200 socket. It's packed with features to ensure your gaming experience is top-notch. The motherboard has four slots for DDR4 RAM giving you up to 128GB of memory, so you won't struggle to run even the most demanding games. You're also provided with six SATA ports and two M.2 slots (one PCIe and one SATA/PCIe). It also features integrated Intel graphics allowing you to play the latest games without the need for a dedicated graphics card. The ASUS TUF GAMING B560M-PLUS WIFI also offers fast and reliable networking options. This includes an Intel Wi-Fi 6 module with 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) which supports both the 2.4GHz and 5GHz bands. There's also a 2.5GB LAN port for wired connections, ensuring you won't experience any lag during online gaming. The ASUS TUF GAMING B560M-PLUS WIFI motherboard also features two USB 3.2 Gen2 Type-A ports at the back, four USB 3.2 Gen1 Type-A ports (2 at the back, 2 at mid-board), eight USB 2.0, one HDMI port, one DisplayPort, as well as five audio jacks. It also has the latest RGB lighting with two AURA Addressable Gen2 and two AURA RGB ports. The ASUS TUF GAMING B560M-PLUS WIFI is undoubtedly one of the best motherboards on the market, and it comes with a 3-year warranty. It also comes with several accessories such as SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, M.2 rubber package, M.2 SSD screw package, and a TUF Gaming sticker. This motherboard is available for £133.03 and is the perfect choice for anyone looking to build a powerful gaming PC.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel B560
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5000(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  1 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe*
  1 x M.2 (2242/2260/2280) - SATA & PCIe

  *This slot is only active with 11th gen CPUs
• RAID: -
• Wireless: Intel Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.0 or later
• LAN: 2.5GB LAN
• Audio: Realtek ALC 897 7.1 Surround Sound High Definition Audio
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  1 x USB 3.2 Gen1 Type-C (at back)
  4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  8 x USB 2.0 (4 at back, 4 at mid-board)
  1 x Front Panel USB 3.2 Gen1 Type-C connector"
• Back Panel I/O Ports: "2 x USB 3.2 Gen2 Type-A
  3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
  4 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x ASUS Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  6 x SATA 6Gb/s
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x AURA Addressable Gen2
  2 x AURA RGB
• .: 1 x Clear CMOS
  1 x COM Port
  1 x Front Audio
  1 x 20-3 pin System Panel
  1 x Thunderbolt
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x M.2 Rubber Package
  1 x M.2 SSD screw package
  1 x TUF Gaming sticker
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
