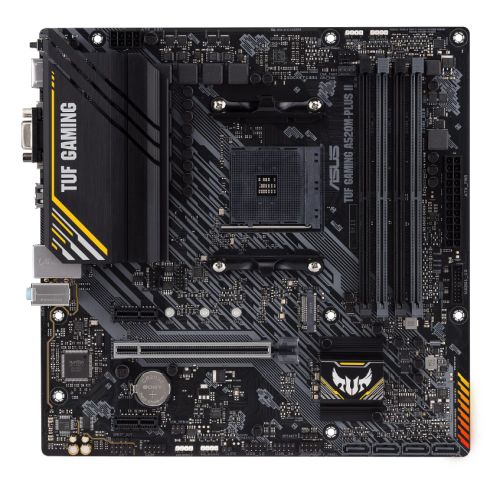

zero-2215-Asus TUF GAMING A520M-PLUS II

AMD A520 (Ryzen AM4) micro ATX gaming motherboard with M.2 support, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, and AURA Addressable Gen 2 headers

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
• Made for online gaming: TUF LANGuard and TurboLAN technology
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Introducing the ASUS TUF GAMING A520M-PLUS II Motherboard The ASUS TUF GAMING A520M-PLUS II Motherboard is a Micro ATX motherboard with an AMD A520 chipset and an AMD AM4 socket. It is ideal for those looking for a reliable and powerful motherboard for their gaming rigs. The motherboard comes with 4 DDR4 slots for RAM, VGA, HDMI and DP connections, and an M.2 slot for additional storage. It also features an integrated graphics processor, 6 USB ports, and a Realtek ALC887/897 7.1-surround sound high definition audio codec. With these features, gamers can enjoy a vastly improved experience with their games. The ASUS TUF GAMING A520M-PLUS II also comes with RAID 0, 1 and 10 support, a GB LAN port and 4 SATA III ports. Additionally, it has a number of other features such as USB 3.2 Gen1 Type-A, 2x4-pin CPU Fan, 2x4-pin Chassis Fan, a 24-pin Main and 8-pin +12V connectors, an M.2 (Key M) slot, an AURA Addressable Gen2 and AURA RGB connector, Clear CMOS, S/PDIF Out, Speaker, SPI TPM (14-1pin), 10-1 pin System Panel connectors, and support for up to 128GB of RAM. The ASUS TUF GAMING A520M-PLUS II also includes a range of accessories, such as 2 SATA 6Gb/s cables, an I/O shield, M.2 SSD screw package, TUF Gaming sticker, Support DVD, TUF Certification card, user manual and more. The ASUS TUF GAMING A520M-PLUS II Motherboard comes with a 3-year manufacturer's warranty and is currently available for purchase at a price of £77.30. With all its features and accessories, this motherboard is sure to satisfy gamers looking for a powerful and reliable solution for their gaming rigs.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A520
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4866(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
  5 x USB 2.0 (2 at back, 3 at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x BIOS FlashBack button
  1 x DisplayPort
  1 x HDMI
  1 x D-Sub
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x AURA Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
  1 x COM Port
• .: 1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x TUF Gaming sticker
  1 x Support DVD
  1 x TUF Certification card
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.3000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
