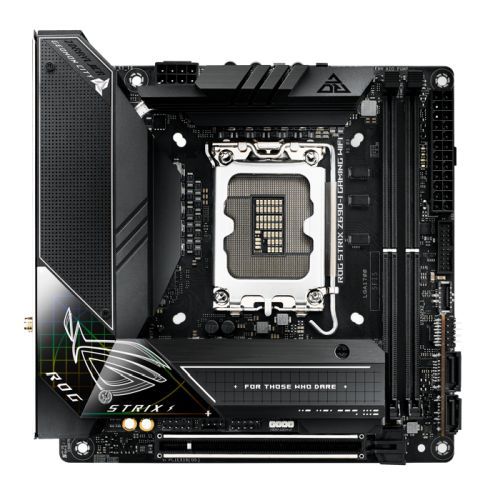

zero-2208-Asus ROG STRIX Z690-I GAMING WIFI

Intel Z690 LGA 1700 ITX motherboard with PCIe 5.0, 10+1 power stages, Two-Way AI Noise Cancellation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt 4 USB Type-C, SATA and Aura Sync RGB lighting

• Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates
• High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2x2 Type-C
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
• DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button
• Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Introducing the ASUS ROG STRIX Z690-I GAMING WIFI Motherboard ASUS has released a new motherboard, the ASUS ROG STRIX Z690-I GAMING WIFI Motherboard, that is sure to excite enthusiasts. This cutting-edge motherboard with Intel Z690 Chipset and Intel 1700 Socket offers lots of features for gamers, overclockers, and PC DIYers. The ASUS ROG STRIX Z690-I GAMING WIFI Motherboard features two DDR5 RAM slots for up to 64GB of total RAM, two M.2 slots, two Thunderbolt 4 ports, and HDMI. It also provides dual-channel DDR5 RAM speeds up to 6400MHz (OC), Intel Rapid Storage supporting NVMe RAID 0/1/5, SATA RAID 0/1/5/10, and Wi-Fi 6E with 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) technology. The ASUS SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 provides an immersive audio experience. The ASUS ROG STRIX Z690-I GAMING WIFI Motherboard also comes with a plethora of other features. There are four SATA III ports, eleven USB ports (two Thunderbolt 4 ports, two USB 3.2 Gen2 Type-A, five USB 3.2 Gen1 Type-A, four USB 2.0, and one USB 3.2 Gen2x2 Type-C front panel connector), one PCIe 5.0 x16, and two.5GB LAN. The motherboard also supports Intel HD Graphics and is optimized for use with the latest Intel CPUs. The ASUS ROG STRIX Z690-I GAMING WIFI Motherboard comes with accessories including a ROG USB2.0 splitter cable, panel cable, SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, cable ties pack, M.2 Q-Latch package, and ROG key chain. Asus has built the ASUS ROG STRIX Z690-I GAMING WIFI Motherboard for maximum performance and usability, and it comes with a three-year warranty. All in all, the ASUS ROG STRIX Z690-I GAMING WIFI Motherboard offers unbeatable value, with all the features gamers, overclockers, and PC DIYers could want, at a price of only £316.62.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Mini ITX
• Socket: Intel 1700
• Chipset: Intel Z690
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
• PCI/PCI Express: 1 x PCIe 5.0 x16
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
  2 x USB 3.2 Gen2 Type-A (at back)
  5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C
  2 x USB 3.2 Gen2 Type-A
  3 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  LED-illuminated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack  button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin AIO Pump
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
  1 x USB 2.0
  1 x Addressable Gen2
  1 x AURA RGB
• .: 1 x 2 pin POWER_BTN
  2 x USB Type-C connectors to Install ROG Strix Front panel SATA card
• Accessories: 1 x ROG USB2.0 splitter cable
  1 x Panel Cable
  2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x M.2 Q-Latch package
  1 x ROG key chain
  1 x ROG logo plate stickers
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.4500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
