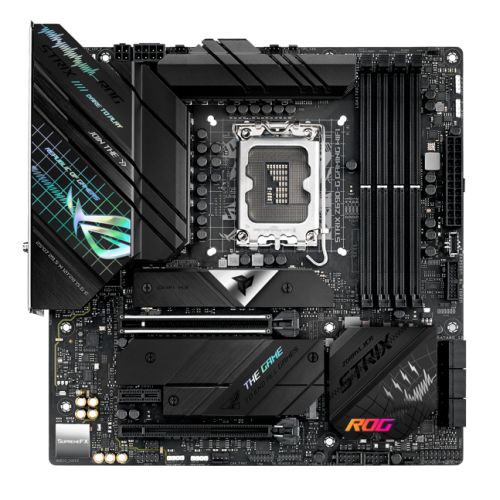

zero-2207-Asus ROG STRIX Z690-G GAMING WIFI

Intel Z690 LGA 1700 ATX motherboard with PCIe 5.0, 14+1 DrMos, DDR5 memory support, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, three M.2 slots with heatsinks, PCIe 4.0 NVMe SSD support, M.2 backplates, USB 3.2 Gen 2x2 Type-C, SATA and AURA Sync RGB lighting

• Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
• Optimal Power Solution: 14+1 DrMos with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, three onboard M.2 heatsinks, and M.2 backplates for two M.2 slots
• High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
• Intelligent Control: ASUS-exclusive AI Overclocking and Two-Way AI Noise Cancelation to simplify setup and improve performance
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button
• Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
• Industry-leading Gaming Audio: High fidelity audio with ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
• Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86

Introducing the Asus ROG STRIX Z690-G GAMING WIFI Motherboard For those looking for a reliable and high-performance motherboard, the ASUS ROG STRIX Z690-G GAMING WIFI is an ideal choice. This Micro ATX motherboard features a range of powerful components including the Intel Z690 chipset and DDR5 RAM slots. Plus, with its integrated graphics, HDMI and DisplayPort outputs, plus PCIe locations, this motherboard is sure to provide you with the performance you need. And with a cost of £264.33, it won’t break the bank. The ASUS ROG STRIX Z690-G GAMING WIFI motherboard comes with an Intel 1700 socket and is capable of supporting RAM speeds up to an impressive 6,000(OC). It has four DDR5 RAM slots and can handle up to 128 GB of RAM. The integrated graphics provides HDMI and DisplayPort outputs and the board also has a PCIe 5.0 x16 slot plus a PCIe 4.0 x16 and a PCIe 3.0 x1 slot. Storage is also plentiful, with the motherboard offering 6 x SATA III slots as well as 2 x M.2 sockets for NVMe RAID 0/1/5 and SATA RAID 0/1/5/10. Wireless connections are also available, with Wi-Fi 6E and 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) connections supported, as well as Bluetooth v5.2. You also get 2.5GB LAN. In addition to all these features, the ASUS ROG STRIX Z690-G GAMING WIFI motherboard comes with great audio capabilities, with the ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 for crisp and clear sound. The board also offers plenty of USB ports, with 1 x USB 3.2 Gen 2x2 Type-C and 1 x USB 3.2 Gen2 Type-C at the back, plus 2 x USB 3.2 Gen2 Type-A and 6 x USB 3.2 Gen1 Type-A at the back and mid-board. The motherboard also has 6 x gold-plated audio jacks as well as an optical S/PDIF out. For those looking for a reliable and high-performance motherboard, the ASUS ROG STRIX Z690-G GAMING WIFI is an ideal choice. With its array of features and the latest technology, plus a reasonable price tag, this motherboard is sure to perform just as you need it to.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel Z690
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6000(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1

• Storage: 6 x SATA III
  2 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  2 x USB 3.2 Gen2 Type-A (at back)
  6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
  3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
  4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x ASUS Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack  button
  1 x Clear CMOS button "
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  3 x M.2 (Key M)
  6 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 3 x Addressable Gen2
  1 x AURA RGB
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio
  1 x SPI TPM (14-1pin)
  1 x 20-5 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt
• Accessories: 4 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x M.2 Rubber Package
  1 x M.2 Q-Latch package
  1 x M.2 Q-Latch package for M.2 backplate
  1 x ROG key chain
  1 x ROG Strix stickers
  1 x ROG Strix thank you card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.0100 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
