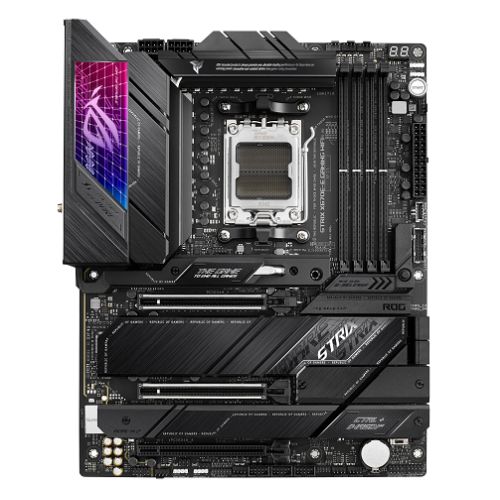

zero-2202-Asus ROG STRIX X670E-E GAMING WIFI

The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors.


PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory.

• Power Stages - 18 + 2 teamed power solution rated for 110A per stage
• Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
• AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click
• PCIe 5.0 - Both x16 slots and three on-board M.2 slots are PCIe Gen 5-ready
• DDR5 - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
• DIY Friendly - Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
• WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
• Massive M.2 Heatsink - Bonus accessory takes M.2 cooling to the next level

Introducing the ASUS ROG STRIX X670E-E GAMING WIFI Motherboard The ASUS ROG STRIX X670E-E GAMING WIFI Motherboard is a powerful gaming and computing solution from ASUS. Constructed with AMD X670 chipset and featuring an ATX form factor, this motherboard is capable of handling your most intensive computing needs. The ASUS ROG STRIX X670E-E GAMING WIFI Motherboard is equipped with four DDR5 DIMM slots, allowing for up to 128GB of memory. It is also equipped with Intel I225 2.5Gb Ethernet, Wi-Fi 6E, and Bluetooth v5.2 so you can get the most out of your networking needs. It also has 1 x HDMI, 1 x DisplayPort, 1 x USB 3.2 Gen2x2 Type-C, 10 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 6 x USB 2.0, and 5 gold-plated audio jacks. For storage, the ASUS ROG STRIX X670E-E GAMING WIFI Motherboard has four SATA III ports, one M.2 (2242/2260/2280) - PCIe, one M.2 (2242/2260/2280) - PCIe, one M.2 (2242/2260/2280/22110) - PCIe, one M.2 (2242/2260/2280) - PCIe, and two PCIe 5.0 x16 slots (supports x16 or x8/x4 modes). Furthermore, the motherboard also supports AMD RAID Xpert technology for both NVMe RAID 0/1/10 and SATA RAID 0/1/10. The ASUS ROG STRIX X670E-E GAMING WIFI Motherboard also comes with ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, integrated graphics, addressable Gen2 lighting, an AURA RGB, alteration mode switch, thermal sensor, cable ties pack, M.2 Q-Latch package, ROG graphics card holder, and a ROG key chain. The ASUS ROG STRIX X670E-E GAMING WIFI Motherboard is an excellent choice for gaming and computing needs and is available for the price of £478.83. With its robust construction, array of features, and its attractive cost, the ASUS ROG STRIX X670E-E GAMING WIFI Motherboard is a great buy.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X670
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 2 x PCIe 5.0 x16 (supports x16 or x8/x4 modes)
  1 x PCIe 4.0 x16 (supports x4 mode)
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
  2 x USB 3.2 Gen2 Type-C (at back)
  10 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  6 x USB 2.0 (at mid-board)
  1 x Front USB 3.2 Gen2x2 Type-C connector
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 (Type-C)
  12 x USB 3.2 Gen2 (10 Type-A, 2 Type-C)
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel I225-V 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack  button
  1 x Clear CMOS button "
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  5 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  4 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 (USB Type-C)
  1 x USB 3.2 Gen1
  3 x USB 2.0
  3 x Addressable Gen2
• .: 1 x AURA RGB
  1 x Alteration Mode Switch
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio (AAFP)
  1 x Start button
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt
• Accessories: 2 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Cable ties pack
  1 x Massive PCIe 5.0 M.2 Bundled Heatsink
  1 x M.2 Q-Latch package for M.2 backplate
  1 x M.2 Q-Latch package
  1 x ROG Graphics card holder
  2 x Rubber Packages for M.2
  1 x Rubber Package for M.2 backplate
  1 x ROG key chain
  1 x ROG Strix sticker
• .: 1 x ROG Strix thank you card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.0000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
