zero-2193-Asus ROG STRIX B760-A GAMING WIFI D4

PRODUCT CODE:    AUMBB760ASTWID4

MANUFACTURER:    ASUS

CATEGORY:    Motherboards

£ 216.073 Last stock amount = 82

On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

  • 12 + 1 Power Stages - Robust Power Solution
  • PCIe 5.0 x16 slot
  • USB 3.2 Gen 2x2 Type-C rear I/O port
  • Wi-Fi 6E
  • DIY-Friendly Design


Vist our online store for availability and uptodate pricing

Zero42 ONLINE SHOP

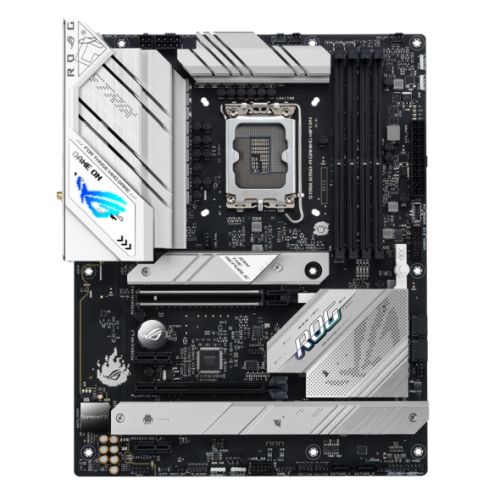

Photograph of zero-2193-Asus ROG STRIX B760-A GAMING WIFI D4




On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.



  • 12 + 1 Power Stages - Robust Power Solution
  • PCIe 5.0 x16 slot
  • USB 3.2 Gen 2x2 Type-C rear I/O port
  • Wi-Fi 6E
  • DIY-Friendly Design





DIY-Friendly Features

PCIe® Slot Q-Release
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.


M.2 Q-Latch
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.


BIOS Flashback™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.


Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.






All-Round Performance

The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.


POWER Architecture
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.


Alloy Chokes And Durable Capacitors
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.


Six-Layer PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.


OptiMem II
OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.


VRM Heatsink Array
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.


M.2 Heatsinks
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.


CPU Fan Headers
Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.


AIO Pump Fan Header
A dedicated PWM/DC header connects self-contained water-cooling setups.


4-Pin Fan Headers
Each header supports auto-detection of PWM or DC fans.






Leading Connectivity

The Strix B760-A D4 is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.


PCIe Performance
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.


WiFi 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.


Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.


USB
A USB 3.2 Gen 2x2 Type-C® port offers speedy data transfers up to 20 Gbps.


SupremeFx
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.






Play In Style

Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A D4 shine in every build.


Undeniably ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A D4 bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.


Outshine The Competition
ROG Strix motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.


Cooler Compatibility
The ROG Strix B760-A D4 bears the same LGA 1700 socket as Z690 and B660 models, so many existing coolers are compatible, including all AIO offerings from ASUS and ROG.


The ROG STRIX Ecosystem Awaits
Level up your game with ROG Strix. Enjoy complimentary aesthetics, control, and compatibility across AIO coolers, cases, peripherals, and much more. ROG offers more choices than any other brand.






Software Utilities

A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.


Two-Way AI Noise Cancelation
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.


AI Networking
GameFirst VI optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. The latest update includes dedicated support for GeForce NOW to ensure the lowest latency possible during intense game streaming sessions.


UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.


AI Suite 3
AI Suite 3 gives you digital power controls and hardware monitoring directly from the OS. Intuitive sliders and dials let you take command of your VRM, including tweaking load-line calibration, switching frequency, and voltage droop, all while tracking CPU vitals and fan speeds in real time.


Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.


DTS Sound Unbound
Through the pre-loaded DTS® Sound Unbound™ app, the ROG Strix B760-A D4 envelops you in rich audio, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Microsoft spatial sound technology, DTS Sound Unbound creates an audial 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep, or other sound in your virtual environment.


AIDA64 Extreme
The ROG Strix B760-A D4 includes a sixty-day AIDA64 Extreme subscription, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the LCD panels of ROG AIO liquid coolers*.


Armoury Crate
Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.

You can use Armoury Crate to download drivers, tools, and user manuals, and to register products. It also taps into a special news feed that connects you to the global ASUS gaming community.




The ASUS ROG STRIX B760-A GAMING WIFI D4 is the latest gaming motherboard from ASUS, designed for maximum performance and connectivity. Boasting an Intel B760 chipset and 4 DDR4 slots, this motherboard offers top-of-the-line gaming power with a host of features. The ROG STRIX B760-A supports Intel 1700 socket CPUs, providing support for up to 5333(OC) in RAM speeds. It has one PCIe 5.0 x16 and one PCIe 3.0 x16 slots, as well as two PCIe 3.0 x1 slots. Graphics are integrated, and the motherboard has 1 x HDMI and 1 x DisplayPort ports. Storage wise, the B760-A features 4 x SATA III, 1 x M.2 (2242/2260/2280) - PCIe, 1 x M.2 (2242/2260/2280/22110) - PCIe, and 1 x M.2 (2242/2260/2280) - PCIe slots. It also supports Intel Rapid Storage Technology with SATA RAID 0/1/5/10. The motherboard also has built-in Wi-Fi 6E (802.11 a/b/g/n/ac/ax) 2x2 wireless capabilities, and 2.5GB LAN for maximum network connectivity. It also has ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 and supports up to 6 USB ports. The ASUS ROG STRIX B760-A GAMING WIFI D4 is an ideal choice for gamers looking for maximum performance from their gaming system. It is priced at £216.07, and comes with a 3 year warranty. The integrated RGB lighting and clear CMOS button add a touch of style, making this motherboard a great choice for gamers looking to build a powerful, yet stylish gaming system.

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel B760
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 5333(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 3.0 x16 (supports x4 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2242/2260/2280/22110) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
  • RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
  • Wireless: Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    1 x USB 3.2 Gen1 Type-C (at back)
    4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
    7 x USB 2.0 (4 at back, 3 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2 Header"
  • Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
    4 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    5 x Audio jacks
    1 x BIOS FlashBack button "
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    4 x 4-pin Chassis Fan
    1 x 24-pin Main
    1 x 8-pin +12V
    1 x 4-pin +12V
    3 x M.2 (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2 Type-C
    1 x USB 3.2 Gen1
    1 x USB 2.0 & 1 x USB 2.0 5-1 pin
  • .: 3 x Addressable Gen2
    1 x Aura RGB
    1 x Clear CMOS
    1 x Front Panel Audio
    1 x S/PDIF Out
    1 x 20-5 pin System Panel
    1 x Thunderbolt (USB4)
  • Accessories: 2 x SATA 6Gb/s cables
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    1 x M.2 Rubber Packages
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.3000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
