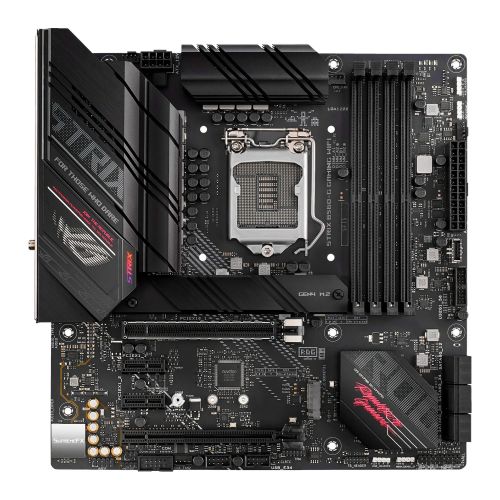

zero-2186-Asus ROG STRIX B560-G GAMING WIFI

Intel® B560 LGA 1200 micro ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, Two M.2 slots with one slot featuring its own heatsink, USB 3.2 Gen 2x2 USB Type-C® , SATA and Aura Sync RGB lighting

• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
• Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• Smooth Networking: On-board Intel® WiFi 6 AX200 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMITM 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C®
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
• Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

Introducing the Asus ROG STRIX B560-G GAMING WIFI Motherboard The Asus ROG STRIX B560-G GAMING WIFI motherboard is an excellent choice for gamers and enthusiasts who want the best combination of power and performance. This micro ATX motherboard is powered by the Intel B560 chipset, supporting the latest 11th generation Intel Core processors. It is equipped with four DDR4 memory slots, up to 128GB of RAM can be installed, and the memory is clocked at up to 5,000MHz (OC). Graphics specifications can vary depending on the type of processor you choose, but the board features integrated graphics as standard, as well as one HDMI port and one DP port. On the storage front, the motherboard offers six SATA III ports, two M.2 slots and support for SATA and PCIe. The board is also packed with features such as Intel Wi-Fi 6, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with support for 2.4/5GHz frequency bands, and Bluetooth v5.0 or later. In addition to all these features, the board also includes a 2.5GB LAN port, ROG SupremeFX 7.1 HD Audio, one USB 3.2 Gen2x2 Type-C port, one USB 3.2 Gen2 Type-A port, two USB 3.2 Gen1 ports, ten USB 2.0 ports, a plethora of internal I/O connectors and RGB lighting out of the box. The Asus ROG STRIX B560-G GAMING WIFI motherboard comes with a 3 year warranty and is available for purchase for £143.77. It is an excellent choice for gamers and enthusiasts who want the best performance combined with a range of features.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel B560
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5000(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  1 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe*
  1 x M.2 (2242/2260/2280) - SATA & PCIe

  *This slot is only active with 11th gen CPUs
• Wireless: Intel Wi-Fi 6
  2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.0 or later
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 HD Audio
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  10 x USB 2.0 (6 at back, 4 at mid-board)
  1 x Front Panel USB 3.2 Gen2 Type-C connector"
• Back Panel I/O Ports: 1 x BIOS Flashback Button
  1 x Central Speaker Out
  1 x DisplayPort
  1 x HDMI
  1 x Line In
  1 x Line Out
  1 x Mic-In
  1 x Rear Speaker Out
  1 x RJ-45
  7 x USB 2.0
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2x2 Type-C
  1 x WiFi Module
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin A10 Pump
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 slots (Key M)
  6 x SATA 6Gb/s
  1 x USB 3.2 Gen2 (Type-C)
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x AURA Addressable Gen2
  2 x AURA RGB
• .: 1 x Clear CMOS
  1 x COM port
  1 x Front Audio
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
  1 x Thunderbolt header
  1 x S/PDIF Out
• Accessories: 2 x SATA cables
  1 x ROG Audio USB-C cable
  1 x Asus WiFi moving antennas
  1 x cable ties pack
  1 x M.2 Q-Latch package
  1 x M.2 Rubber Package
  1 x M.2 SSD screw package
  1 x ROG key chain
  1 x ROG STRIX stickers
  1 x ROG STRIX thank you card
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
