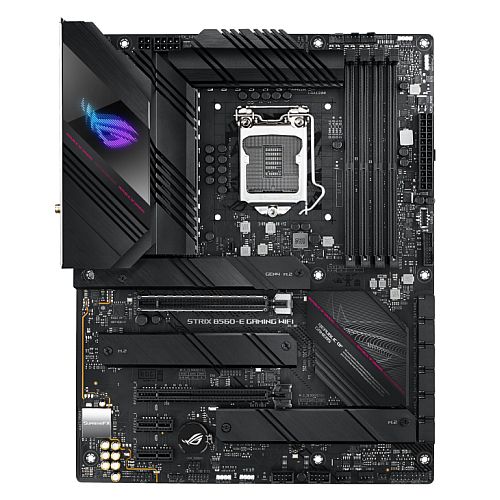

zero-2185-Asus ROG STRIX B560-E GAMING WIFI

Intel® B560 LGA 1200 ATX motherboard with PCIe® 4.0, 14+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, three M.2 slots with heatsinks and NVMe SSD support, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting


• Intel®LGA 1200 Socket: Ready for 11th Gen Intel Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
• Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
• High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
• Best Gaming Connectivity: Supports HDMI® 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2x2 Type-C®
• DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB and Gen 2 addressable headers
• Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
• Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

Are you looking to build the ultimate PC gaming rig? Look no further than the Asus ROG STRIX B560-E GAMING WIFI, Intel B560, 1200, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5G LAN, RGB, 3x M.2. This reliable and powerful motherboard is perfect for gamers who need the best performance, with all the bells and whistles to match! At a reasonable £171.89, this Asus motherboard is built with the latest components to power your gaming needs. With Intel's B560 chipset, this board is compatible with 11th Gen Intel Processors, allowing you to build a powerhouse for even the most demanding of games. The ROG STRIX B560-E GAMING WIFI comes with four DDR4 slots that support up to 128GB of RAM, as well as three M.2 slots for even more storage. With integrated graphics, you can also enjoy 4K gaming without any extra hardware. On top of that, this motherboard also features Wi-Fi 6E for higher speeds and a further range to minimise latency, as well as two.5G LAN for those who prefer wired connections. For display, this motherboard comes with both an HDMI and a DisplayPort port. For cooling, the ROG STRIX B560-E GAMING WIFI comes with four fan headers, one 4-pin CPU fan, 4-pin CPU OPT fan, and 4-pin AIO pump. You can also customise your setup with two Aura Addressable Gen2 headers and two Aura RGB headers, allowing you to further customise and light up your build. In conclusion, the Asus ROG STRIX B560-E GAMING WIFI is a great choice for anyone looking to build a powerful gaming rig. With its reliable components and customised features, you can't go wrong with this motherboard!

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel B560
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: "DDR4 Dual Channel
  Supports non-ECC, un-buffered memory"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5333(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  2 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 4.0 x4*
  1 x M.2 ((2242/2260/2280/22110) - SATA & PCIe 3.0 x4
  1 x M.2 ((2242/2260/2280/22110) - PCIe 3.0 x4

  *This slot is only active with 11th gen CPUs
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC ALC4080
• USB Ports Supported: Rear:
  1 x USB 3.2 Gen2x2 Type-C
  2 x USB 3.2 Gen2 Type-A
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  1 x Audio USB Type-C

  Front:
  1 x USB 3.2 Gen1 Type-C
  2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
  2 x USB 3.2 Gen2 Type-A
  2 x USB 3.2 Gen1 Type-A
  5 x USB 2.0 (4 Type-A, 1 audio USB Type-C)
  1 x HDMI
  1 x DisplayPort
  1 x ASUS Wi-Fi Module
  1 x Intel 1225-V 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  3 x M.2 (Key M)
  6 x SATA 6Gb/s
  1 x USB 3.2 Gen1 USB Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
• .: 2 x AURA Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x 20-5 pin System Panel
  1 x Thunderbolt
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.2500 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
