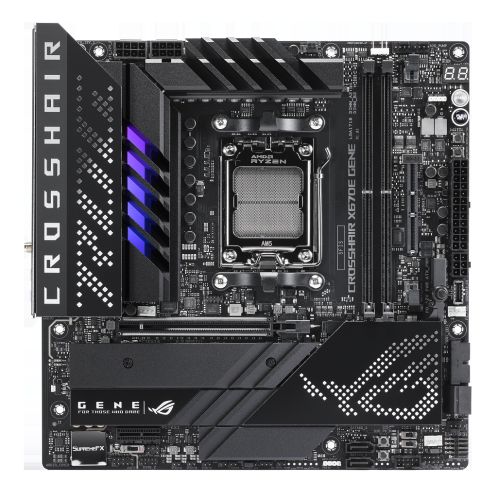

zero-2175-Asus ROG CROSSHAIR X670E GENE

Formed by splicing the ROG DNA and mixing in an SFF enzyme, the ROG Crosshair X670E Gene is a mATX powerhouse that lets you have it all. With bulked-up power delivery and heatsinks, it dishes up a full-fat serving of AMD Ryzen™ 7000 Series processors, alongside a digestible blend of PCIe 5.0, DDR5, WiFi 6E, and USB4 for enthusiasts that want a compact AM5 build on the desktop.



• Power Stages - Robust 16 + 2 teamed power solution rated for 110A per stage
• Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
• DDR5 Memory - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
• PCIe. 5.0 - Both the on-board M.2 slot and x16 slot are PCIe Gen 5-ready
• ROG GEN-Z.2 - ROG GEN-Z.2 adds a Gen 5 and Gen 4 M.2 slot inside a DIY-friendly heatsink shell
• AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click
• WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band
• USB4 delivers up to 40 Gbps speeds - Dual USB4 Type-C® ports for up to 40 Gbps bi-directional bandwidth

Introducing the ASUS ROG CROSSHAIR X670E GENE Motherboard The ASUS ROG CROSSHAIR X670E GENE motherboard, with manufacturer number 90MB1B80-M0EAY0, is designed to give enthusiasts the ultimate in performance and stability. The Micro ATX form factor, combined with the powerful AMD X670 chipset, delivers top-level performance and allows for the installation of DDR5 RAM. You won't have to worry about connections, either. The ASUS ROG CROSSHAIR X670E GENE has two USB4 ports, Wi-Fi 6E, 2.5G LAN, and PD 3.0 60W. It has a total of four SATA III ports, two GEN-Z.2 slots, and three M.2 slots. You can also enjoy the incredible ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080. The back panel I/O ports ensure connectivity with the outside world. There are two USB4 Type-C ports with an Intel JHL8540 USB4 controller, six USB 3.2 Gen2 (five Type-A, one Type-C) ports, two USB 2.0 ports, one Wi-Fi module, one Intel® I226-V 2.5Gb Ethernet port, five gold-plated audio jacks, one optical S/PDIF out, one PS/2 Keyboard/Mouse combo, and one BIOS FlashBack button. The ASUS ROG CROSSHAIR X670E GENE also includes a RGB extension cable, two SATA 6Gb/s cables, ROG GEN-Z.2 with Heatsink, ROG True Voltician, thermal pad for M.2, ASUS Wi-Fi moving antennas, Q-connector, M.2 Q-Latch package for M.2 backplate, ROG Graphics card holder, ROG key chain, ROG stickers, and ROG thank you card. The ASUS ROG CROSSHAIR X670E GENE is a great choice for anyone looking for a powerful, high-performance motherboard. With its range of features and accessories, you can be sure you'll get the most out of your system. And, at a cost of £450.14, it's a great value too.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD X670
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
• Maximum Memory: 64GB
• Graphics Ports: 2 x USB4 ports support USB Type-C display outputs
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe

  Via GEN-Z.2 Card:
  2 x GEN-Z.2 (2242/2260/2280/22110) - PCIe
• RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.2
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: "2 x USB4 Type-C (at back)
  1 x USB 3.2 Gen2x2 Type-C (60W PD/QC4+) (at mid-board)
  1 x USB 3.2 Gen2 Type-C (at back)
  5 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  2 x USB 3.2 Gen2 Type-C (1 at back, 1 at mid-board)
  4 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: "2 x USB4 Type-C w/ Intel JHL8540 USB4 controller
  6 x USB 3.2 Gen2 (5 Type-A, 1 Type-C)
  2 x USB 2.0 ports
  1 x Wi-Fi Module
  1 x Intel® I226-V 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
  1 x PS/2 Keyboard/Mouse combo"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  1 x 4-pin Chassis Fan
  3 x 4-pin Full Speed Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  1 x 6-pin PCIe Graphics Card
  1 x M.2 (Key M)
  1 x Gen-Z.2 slot supports 2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen 2x2 (Type-C)
• .: 1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x 80 Light Bar jumper
  2 x Addressable Gen2
  1 x Alteration Mode Switch
  1 x Aura RGB
  1 x 10-1 pin Front Panel Audio
  1 x LN2 Mode jumper
  1 x Osc sence
  12 x ProbeIt Measurement Points
• .: "1 x RSVD switch
  1 x RSVD header
  1 x Slow Mode switch
  1 x 10-1 pin System Panel
  1 x Thermal Sensor
  Buttons: 2x BCLK, FlexKey, Safe Boot, ReTry, Start"
• Accessories: 1 x RGB extension cable
  2 x SATA 6Gb/s cables
  ROG GEN-Z.2 with Heatsink
  ROG True Voltician
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi moving antennas
  1 x Q-connector
  1 x M.2 Q-Latch package for M.2 backplate
  1 x ROG Graphics card holder
  1 x ROG key chain
  1 x ROG stickers
  1 x ROG thank you card
• .: 1 x Rubber Package for M.2 backplate
  1 x USB drive with utilities and drivers
  Documentation
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
