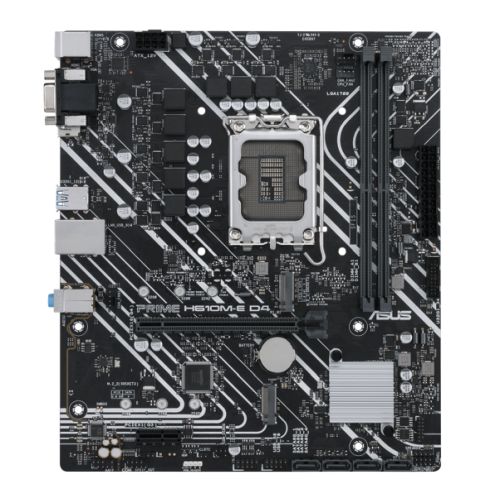

zero-2135-Asus PRIME H610M-E D4

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet, DisplayPort, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header

• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
• 5X Protection III: Multiple hardware safeguards for all-round protection

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Introducing the ASUS PRIME H610M-E D4 – Your Reliable and Powerful Computer Component Are you in the market for a quality motherboard that fits your needs? Look no further than the ASUS PRIME H610M-E D4. This Micro ATX motherboard, manufactured by ASUS, is the perfect addition to any computer setup. The ASUS PRIME H610M-E D4 is equipped with an Intel H610 chipset and a socket Intel 1700, with Dual Channel DDR4 RAM support. You can access up to 64GB of RAM and four SATA III storage ports. There are also two M.2 (2242/2260/2280) - PCIe slots available, making it versatile for a variety of computer builds. In addition, the H610M-E D4 is equipped with a variety of connectivity options. It features VGA, HDMI, DisplayPort, and PCIe4 ports, a Realtek 7.1 Surround Sound High Definition Audio CODEC, and four USB 3.2 Gen1 Type-A ports. This board also includes a variety of other features, such as a SPI TPM (14-1pin), a PS/2 Keyboard port, and a PS/2 Mouse port. Plus, it comes with a three-year warranty, ensuring your satisfaction and peace of mind. The ASUS PRIME H610M-E D4 offers top-notch performance, reliability, and flexibility at a low cost of £99.48. Whether you're building a gaming rig, a workstation, or a media center, this motherboard has everything you need. So, don't wait any longer – get your hands on the ASUS PRIME H610M-E D4, the perfect addition to your next computer build!

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  2 x M.2 (2242/2260/2280) - PCIe
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x D-Sub
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard
  1 x PS/2 Mouse
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RGB
  1 x Clear CMOS
  1 x Front Panel Audio
  1 x COM Port
• .: 1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x Support DVD
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.8580 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
