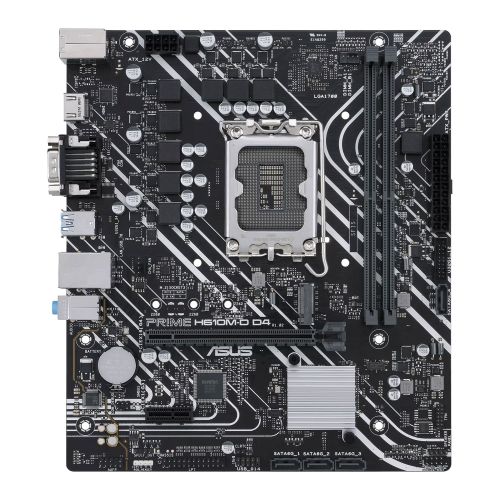

zero-2133-Asus PRIME H610M-D D4

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header


• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
• 5X Protection III: Multiple hardware safeguards for all-round protection

Flexibility

Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Cooling

Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Performance

Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

Customization

Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.

For more information please click here.

Introduction The ASUS PRIME H610M-D D4 Motherboard is an Intel H610 chipset motherboard that is designed to deliver high performance. It has a Micro ATX form factor and is compatible with the Intel 1700 socket. It can support up to 64GB of DDR4 RAM, and has a range of ports, including VGA, HDMI, PCIe4, and one M.2 slot. This motherboard is available for a cost of £100.61. Specifications The ASUS PRIME H610M-D D4 has a Micro ATX form factor and supports the Intel 1700 socket. It is powered by Intel H610 chipset and is compatible with DDR4 RAM. It has two DIMM slots that can support RAM speeds of 3200/3000/2933/2800/2666/2400/2133 MHz. It also has integrated graphics, 1 x VGA and 1 x HDMI port, and 1 x PCIe 4.0 x16 and 1 x PCIe 3.0 x1 slot. Storage The ASUS PRIME H610M-D D4 has four SATA III ports and one M.2 (2242/2260/2280) - SATA & PCIe slot. It also has a GB LAN for wired internet connection, as well as Realtek 7.1 surround sound high definition audio CODEC for superior sound quality. Connectivity and I/O The ASUS PRIME H610M-D D4 has 4 x USB 3.2 Gen1 Type-A ports (2 at back, 2 at mid-board), 4 x USB 2.0 ports (2 at back, 2 at mid-board), 1 x D-Sub, 1 x HDMI, 1 x Realtek 1Gb Ethernet, 3 x audio jacks, 1 x COM port, and 1 x PS/2 Keyboard/Mouse combo. It also has a range of internal I/O connectors, including 1 x 4-pin CPU fan, 1 x 4-pin chassis fan, 1 x 24-pin main, 1 x 8-pin +12V, 1 x M.2 (Key M), 4 x SATA 6Gb/s, 1 x USB 3.2 Gen1, 1 x USB 2.0, 1 x RGB, 1 x clear CMOS, 1 x front panel audio, and 1 x LPT. Accessories The Asus PRIME H610M-D D4 motherboard comes with 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 ANCHOR, 1 x support DVD, 1 x user guide, 1 x S/PDIF Out, 1 x speaker, 1 x SPI TPM (14-1pin), and 1 x 10-1 pin system panel. It also has a 3 year warranty. Conclusion The Asus PRIME H610M-D D4 motherboard is an Intel H610 chipset motherboard that is designed to deliver high performance. It has a Micro ATX form factor and is compatible with the Intel 1700 socket. It can support up to 64GB of DDR4 RAM, and has a range of ports, including VGA, HDMI, PCIe4, and one M.2 slot. This motherboard is available for a cost of £100.61, and comes with a range of accessories and a 3 year warranty.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)"
• Back Panel I/O Ports: 2 x USB 3.2 Gen1 Type-A
  4 x USB 2.0
  1 x D-Sub
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x COM port
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  1 x USB 2.0
  1 x RGB
  1 x Clear CMOS
  1 x Front Panel Audio
  1 x LPT
• .: 1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 ANCHOR
  1 x Support DVD
  1 x User Guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
