zero-2123-Asus PRIME H310M-R R2.0

• ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
• ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
• ASUS Overvoltage Protection: World-class circuit-protecting power design
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM: 3+1 Phase digital power design






• Optimem (Improved DDR4 stability)

• EPU

• The most advanced options with a fast response time

• ASUS AI Charger
• ASUS AI Suite 3

• ASUS EZ Flash

• Component-free areas to minimize damage risk







• ASUS Q-Slot
• ASUS Q-DIMM

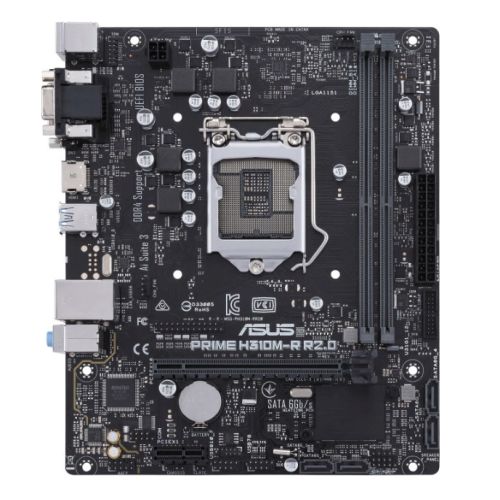

Introducing the ASUS PRIME H310M-R R2.0 Motherboard The ASUS PRIME H310M-R R2.0 Motherboard is a robust little board with enough features and power to bring your Intel 1151-based system to life. It offers an Intel H310 chipset, Micro ATX form factor, and up to 32GB DDR4 Dual Channel RAM. It also offers a variety of graphics ports, including VGA, DVI, and HDMI. The ASUS PRIME H310M-R R2.0 is available for a great price of £59.61. The ASUS PRIME H310M-R R2.0 Desktop Motherboard offers a wide range of features. It includes a socket for Intel 1151 - Coffee Lake, chipset Intel H310, dual channel DDR4 RAM with speeds of up to 2666/2400/2133MHz, and a maximum memory capacity of 32GB. It also supports Intel HD Graphics and includes one PCIe 3.0 x16 slot and one PCIe 2.0 x1 slot for adding additional cards. Storage-wise, the ASUS PRIME H310M-R R2.0 offers four SATA III ports and a variety of rear and mid-board I/O ports. Rear Connectivity includes one PS/2 keyboard, one PS/2 mouse, two USB 3.1 Gen 1, two USB 2.0, one HDMI, one D-Sub, one DVI-D, one LAN (RJ-45), and 3 audio jacks. Mid-board Connectivity includes one USB 3.1 Gen 1, two USB 2.0, four SATA 6.0Gb/s, one 4-pin CPU Fan, one 4-pin Chassis Fan, one COM port, one front audio, one LPT port, one speaker, one Chassis Intrusion, one 24-pin EATX port, one 4-pin ATX 12V port, one 14-1 pin TPM, one System panel, and one Clear CMOS port. The ASUS PRIME H310M-R R2.0 Motherboard also features a Realtek ALC887 8-channel High Definition Audio CODEC, and comes with a 3 year manufacturer's warranty. Whether you are building a budget gaming machine, a home office PC, or just a general computing workhorse, you can rely on the ASUS PRIME H310M-R R2.0 Motherboard to power it up.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1151 - Coffee Lake
• Chipset: Intel H310
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 2666 / 2400 / 2133 MHz
• Maximum Memory: 32GB
• Graphics: Supports Intel HD Graphics
• Graphics Ports: 1 x VGA
  1 x DVI-D
  1 x HDMI
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 3.0 x16 slot (at x16 mode)
  1 x PCIe 2.0 x1 slot
• PCI: -
• Storage: 4 x SATA III
• RAID: -
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887 8-channel High Definition Audio CODEC
• USB Ports Supported: "4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
  4 x USB 2.0 (2 at back, 2 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 keyboard
  1 x PS/2 mouse
  2 x USB 3.1 Gen 1
  2 x USB 2.0
  1 x HDMI
  1 x D-Sub
  1 x DVI-D
  1 x LAN (RJ-45)
  3 x Audio jacks
• Internal I/O Connectors: 1 x USB 3.1 Gen 1
  2 x USB 2.0
  4 x SATA 6.0Gb/s
  1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x COM
  1 x Front audio
  1 x LPT
  1 x Speaker
  1 x Chassis Intrusion
  1 x 24-pin EATX
  1 x 4-pin ATX 12V
• .: 1 x 14-1 pin TPM
  1 x System panel
  1 x Clear CMOS
• Additional Features: See Overview
• Package Type: OEM
• Package Weight: 0.7700 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
