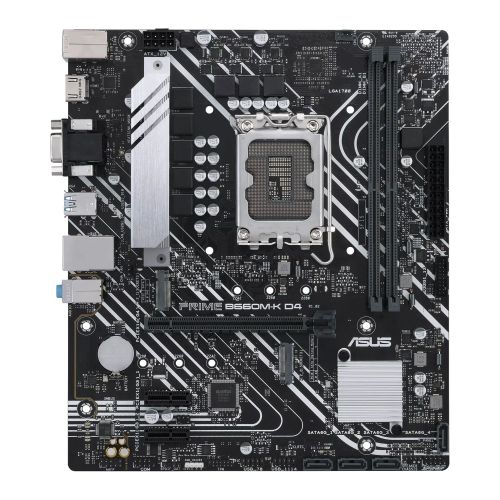

zero-2116-Asus PRIME B660M-K D4

Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0, two M.2 slots, DDR4, HDMI®, D-Sub, Realtek 1Gb Ethernet, front USB 3.2 Gen 1, ASUS Lighting Control


• Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
• Enhanced power solution: 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
• Ultrafast connectivity: PCIe® 4.0, two M.2 slots and front USB 3.2 Gen 1



Are you in the market for an upgrade to your PC motherboard? Look no further than the Asus PRIME B660M-K D4, a high-performance Micro ATX motherboard designed to work with the Intel B660 chipset. This motherboard comes with two DDR4 slots, allowing you to install up to 64GB of RAM. It also has a range of connectivity options, including integrated VGA and HDMI ports, two PCIe 4.0/3.0 x16 slots, two PCIe 3.0 x1 slots, and four SATA III ports. For storage, there are two M.2 slots for high-speed SSDs. The back panel I/O ports include four USB 3.2 Gen1 Type-A ports, two USB 2.0 Type-A ports, one D-Sub port, one HDMI port, one Realtek 1Gb Ethernet port, three audio jacks, and one PS/2 Keyboard/Mouse combo. On the inside, you'll find additional USB ports, an RGB port, a clear CMOS port, and a COM port. Other features of the Asus PRIME B660M-K D4 include an Intel Rapid Storage Technology that supports SATA RAID 0/1/5/10, a Realtek 7.1 Surround Sound High Definition Audio CODEC, and a 10-1 pin System Panel for extra performance. The Asus PRIME B660M-K D4 comes with a three-year warranty and is available for £117.36. With its range of features, it is an ideal choice for those looking for a reliable and powerful motherboard for their PC.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B660
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 5333(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• PCI/PCI Express: 1 x PCIe 4.0/3.0 x16
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: -
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0 Type-A
  1 x D-Sub
  1 x HDMI
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  2 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RGB
  1 x Clear CMOS
  1 x COM Port
  1 x Front Panel Audio
• .: 1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  2 x M.2 anchors
  1 x Support DVD
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9300 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
