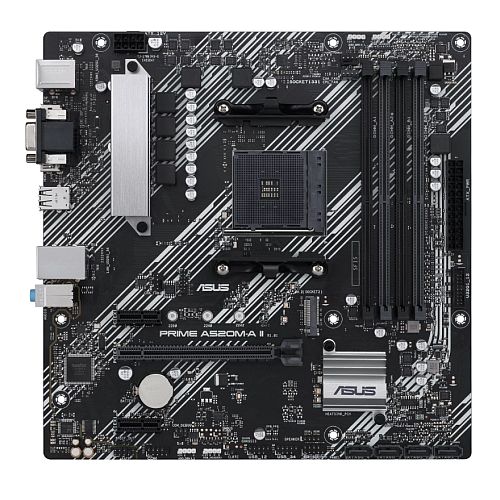

zero-2095-Asus PRIME A520M-A II

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support

• AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
• Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Introducing the ASUS PRIME A520M-A II Motherboard ASUS is a renowned name in the tech world and they have produced a top-of-the-range motherboard with the Asus PRIME A520M-A II. This AMD A520 chipset motherboard is a Micro ATX form factor and can support up to 4 DDR4 RAM slots. It also has VGA, HDMI and DisplayPort connections as well as an ultra-fast M.2 slot for storage. All this comes at an affordable price of £66.66. Design and Features The ASUS PRIME A520M-A II is a Micro ATX motherboard designed to fit into systems with limited space. It is made of high-grade components that make it both reliable and efficient. For processors, it supports both AMD AM4 socket chipsets and AMD A520 chipsets. It can also accept up to 4 DIMM slots for DDR4 RAM with speeds of up to 4866(OC). This motherboard also has integrated graphics processor support to enable users to take advantage of 4K video display, as well as VGA, HDMI and DisplayPort connections for maximum flexibility. Storage and Connectivity The ASUS PRIME A520M-A II has 4 SATA III connections as well as an ultra-fast M.2 (2242/2260/2280) slot for storage. It also has RAID 0, 1, 10 support, so users can easily create Redundant Arrays of Inexpensive Disks (RAID). The ASUS PRIME A520M-A II has a variety of connectivity options, including 6 x USB 3.2 Gen1 (4 at back, 2 at mid-board) and 6 x USB 2.0 (2 at back, 4 at mid-board) ports. It also has 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard/Mouse combo and 1 x 10-1 pin System Panel connectors. Additionally, it has a Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC for immersive audio. Additional Features The ASUS PRIME A520M-A II is also packed with some additional features. It has 2 x AURA Addressable Gen2 and 2 x AURA RGB connections for lighting effects. Plus, it has a convenient Clear CMOS button and a COM Port to connect to external serial devices. The box also includes 2 x SATA 6Gb/s cables, 1 x I/O Shield, 1 x M.2 SSD screw package, 1 x Support DVD and 1 x User manual. Conclusion The ASUS PRIME A520M-A II is an excellent choice for users looking for an affordable, yet reliable AMD A520 chipset motherboard. It has a Micro ATX form factor so it can easily fit into most systems and has an impressive array of features and connectivity options. For users wanting to take advantage of 4K videplayback, RAID support and lightning fast M.2 slots, the ASUS PRIME A520M-A II is the perfect choice.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A520
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4866(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 4 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x DisplayPort
  1 x HDMITM
  1 x D-Sub
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  2 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen1
  2 x USB 2.0
  2 x AURA Addressable Gen2
  2 x AURA RGB
  1 x Clear CMOS
  1 x COM Port
• .: 1 x Front Panel Audio
  1 x S/PDIF Out
  1 x Speaker
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x I/O Shield
  1 x M.2 SSD screw package
  1 x Support DVD
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
