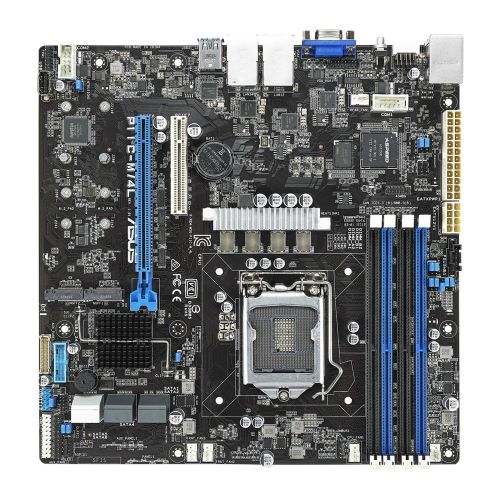

zero-2088-Asus P11C-M/4L Rack-Optimized Server MB
PRODUCT CODE: AUMBP11CM4L
MANUFACTURER: ASUS
CATEGORY: Motherboards
£ 170.544 Last stock amount = 97
Intel® Xeon® E micro-ATX server motherboard with rack-optimised design and quad networking
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 64GB memory support (4 DIMMs)
- Rack-optimised design maximises cooling for excellent thermal efficiency
- Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
- Quad Intel® I210AT Gigabit Ethernet with teaming support
- Dual M.2 for up to 32Gbps performance and data redundancy
- High-speed mini-SAS HD connections
- TPM-M 2.0 support for enhanced platform integrity
- Complete server management with ASUS Control Centre
Vist our online store for availability and uptodate pricing
Zero42 ONLINE SHOP
Intel® Xeon® E micro-ATX server motherboard with rack-optimised design and quad networking
- Powered by the Intel® Xeon® E platform
- 95W CPU and up to 64GB memory support (4 DIMMs)
- Rack-optimised design maximises cooling for excellent thermal efficiency
- Flexible expandability with 6 native SATA HDDs and two PCIe Gen3 slots
- Quad Intel® I210AT Gigabit Ethernet with teaming support
- Dual M.2 for up to 32Gbps performance and data redundancy
- High-speed mini-SAS HD connections
- TPM-M 2.0 support for enhanced platform integrity
- Complete server management with ASUS Control Centre
P11C-M/4L is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering quad server-class Intel® Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6” x 9.6” micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
P11C-M/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximising RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
NVMe high-speed storage interface
P11C-M/4L adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/4L features shared common backplane to improve drive choices.
P11C-M/4L features quad server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualisation applications perfectly which requires ultrafast and reliable network.
P11C-M/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
P11C-M/4L features an optional embedded iKVM module and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
With its power button located on the front I/O panel, P11C-M/4L is designed to provide easier maintenance and deployment for diverse applications.
P11C-M/4L provides instant system information during initialisation as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
Introducing the ASUS P11C-M/4L Rack-Optimized Server Motherboard, the perfect combination of power and performance for your server or workstation. This Micro ATX motherboard features an Intel C242 chipset and 1151 socket for Intel Xeon E family processors, and is equipped with four Gigabit LAN ports and an M.2 slot for powerful data transfer speeds. The P11C-M/4L is ideal for rack-optimized servers and workstations, providing up to 128GB of DDR4 RAM and full Intel Xeon E processor support. The rear I/O panel includes two USB 3.1 Gen 2 ports, two USB 3.1 Gen 1 ports, one VGA port, and four Gigabit LAN ports plus a management LAN port. The motherboard also features six SATA III ports and two M.2 slots for additional storage options. The integrated Aspeed AST2500 graphics processor with 32MB of VRAM provides great visuals for the server’s operating system, while the onboard TPM, PSU power, COM, USB 3.0, USB 2.0, and fan headers make installation and maintenance a breeze. The P11C-M/4L also features an onboard header for an optional management card, and comes with a three-year warranty. Overall, the ASUS P11C-M/4L Rack-Optimized Server Motherboard is an excellent choice for anyone looking to build a powerful and reliable server or workstation. With its Intel Xeon E processor support, four Gigabit LAN ports, M.2 slots, and more, it’s definitely a motherboard worth considering. And at just £170.54, it’s an excellent value for money.
Description
Specification
- Motherboard Type: Server / Workstation
- Form Factor: Micro ATX
- Socket: Intel 1151 - Coffee Lake
- Chipset: Intel C242
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2666/2400 MHz UDIMM non ECC and with ECC
- Maximum Memory: 128GB
- Graphics: Aspeed AST2500 with 32MB VRAM
- Graphics Ports: 1 x VGA
- Multi-GPU Support: -
- PCI/PCI Express: "Total Slot : 2
Location 6 : PCIe x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied
Location 7 : PCIe x8 (Gen3 X8 Link)" - Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: Quad GB LAN & Mgmt LAN Port
- USB Ports Supported: "2 x USB 3.1 Gen2 Type-A (at back)
4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
2 x USB 2.0 ports (at mid-board)
1 x USB 3.0 front connector (Type-A)" - Back Panel I/O Ports: 1 x External Serial Port
2 x USB 3.1 Gen 2
2 x USB 3.1 Gen 1
1 x VGA Port
4 x GbE LAN + 1 x Mgmt LAN - Internal I/O Connectors: 1 x TPM
1 x PSU Power
1 x COM
1 x USB 3.0
1 x USB 2.0
1 x USB connector
5 x Fan Header
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
1 x Serial Port
1 x VGA - .: 2 x M.2
1 x Onboard header for optional management card - Accessories: 2 x Support CD
1 x I/O shield
6 x SATA 6G cables
1 x Plate for LGA1151 - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.9100 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 4 x LAN
- #Hide#Max LAN Speed: GB LAN
