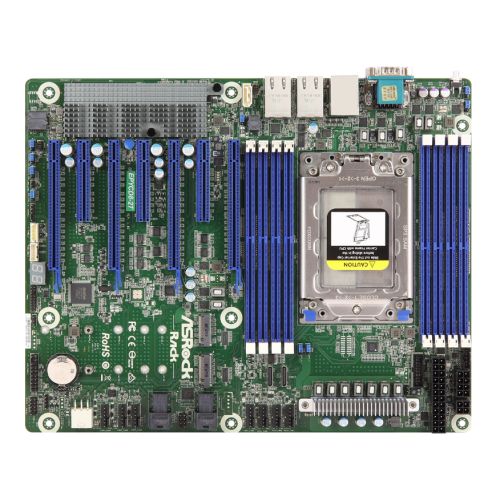

zero-2084-Asrock Rack EPYCD8-2T Server Board

• ATX 12'' x 9.6''
• Single Socket SP3(LGA4094) support AMD EPYC 7002/7001 series processor family
• Supports 8 Channels DDR4 2667/2400/2133 RDIMM, LRDIMM 8 x DIMM slots
• Supports 8x SATA3 6.0 Gb/s (from 2x mini SAS HD), 1x SATA DOM and 2 x M.2
• Supports 2 X 10G LAN by Intel X550
• Supports 4 PCIe3.0x 16, 3 PCIe 3.0x8
• Supports 2 OCulink

Introducing the Asrock Rack EPYCD8-2T Server Board, a powerful and feature-packed motherboard capable of handling more demanding tasks. This ATX form factor board boasts a robust 8 channel DDR4 RAM, Dual 10G LAN, IPMI, OCuLink Support, mini SAS, and M.2 support, allowing you to expand your build drastically. With a price tag of £ 358.29, it is one of the best value motherboards on the market today. The Asrock Rack EPYCD8-2T Server Board is designed to be the perfect foundation for any build, offering a blend of power and reliability. It features a AMD SP3 (LGA4094) socket, supporting a maximum of 128GB of DDR4 RAM. To ensure maximum performance, the board also includes an ASPEED AST2500 DDR4 128Mb graphics processor. For storage and connectivity options, the Asrock Rack EPYCD8-2T Server Board offers nine SATA III ports, two M.2 slots (2230/2242/2260/2280), dual 10G LAN ports, and dedicated IPMI LAN port. It also features four USB 3.1 Gen 1 ports, two USB 2.0 ports, and a VGA port for graphics. Asrock Rack EPYCD8-2T Server Board is an excellent choice for those looking to build a powerful, versatile and reliable machine. It has plenty of features and a wide array of storage and connectivity options, all at an incredibly competitive price point. With a 3-year warranty, you can trust that the Asrock Rack EPYCD8-2T Server Board is a reliable and capable motherboard for any build.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: AMD SP3 (LGA4094)
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Eight Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: RDIMM: 2666/2400MHz

  LRDIMM: 2666/2400MHz
• Maximum Memory: 128GB
• Graphics: ASPEED AST2500
  DDR4 128Mb
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: PCIe 3.0 x 16:
  - PCIE1: Gen3 x16 link
  - PCIE3: Gen3 x16 link
  - PCIE5: Gen3 x16 link
  - PCIE7: Gen3 x16 link

  PCIe 3.0 x 8:
  - PCIE2: Gen3 x8 link
  - PCIE4: Gen3 x8 link
  - PCIE6: Gen3 x8 link
• Storage: 9 x SATA III (from 2x mini SAS & 1x SATA DOM)
  2 x M.2 (2230/2242/2260/2280) - SATA & PCIe
• Wireless: -
• LAN: Dual 10G LAN & Dedicated IPMI LAN port
• Audio: -
• USB Ports Supported: "4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
  2 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: 1 x VGA
  2 x USB 3.1 Gen1
  2+1 RJ45 Gigabit LAN
  1 x Serial Port
  1 x UID Button/UID LED
• Internal I/O Connectors: 1 x SATA DOM
  2 x M.2
  1 x Front LED
  1 x Auxiliary Panel
  1 x TR1
  1 x TPM
  1 x IPMB
  7 Fans x 6-pin (1CPU/4Front/2Rear)
  1 x USB 3.1 (Gen1)
  1 x USB 2.0
  1 x Speaker
  1 x BMC_SMB
• .: 1 x Clear CMOS
  1 x PSU SMB
  4 x ATX Power (24-pin + 8-pin + 4-pin + 6-pin)
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.7000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#RGB Lighting: No
