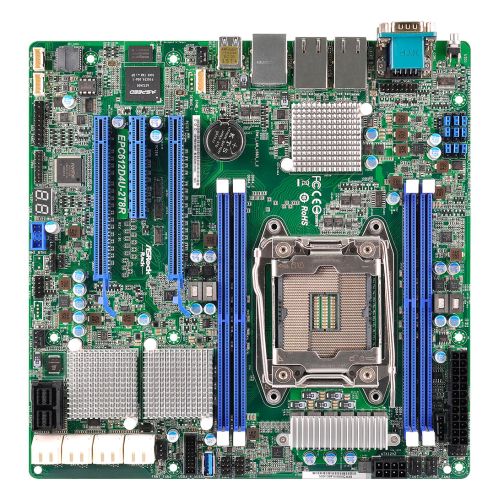

zero-2082-Asrock Rack EPC612D4U Server Board

• UATX 9.6''x9.6''
• Single Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 series
• Supports Quad channel DDR4 2133/1866 RDIMM/LR DIMM/NV DIMM, 4 slots
• Support 8 SATA3 by C612
• Supports 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x 8
• ASPEED 2400. Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
• Supports Intel Dual GLAN by Intel i350

Introducing the ASROCK_RACK EPC612D4U Motherboard Are you looking for a reliable, high-performance motherboard for your server or workstation? The ASROCK_RACK EPC612D4U motherboard could be the perfect solution. With its cutting-edge technology, this motherboard is designed to provide a reliable performance that you can rely on in demanding environments. This motherboard is designed to be used in Intel C612 motherboards with an Intel 2011 socket and features a Micro ATX form factor. It is equipped with dual Gigabit LAN ports and an IPMI LAN port, as well as a serial port, allowing you to easily connect your peripherals and networks. With four DDR4 ECC Registered (Quad Channel) RAM slots, it can hold up to 64GB of RAM, making it suitable for even the most intense workloads. The built-in ASPEED AST2400 graphics card provides smooth and responsive graphics performance, while the 8 x SATA III ports allow for fast and reliable storage. With support for RAID 0, 1, 5 and 10, as well as a range of ports for USB 3.0 and 2.0, this motherboard is sure to meet all your requirements. It comes with a 3 year warranty, so you can be sure of your purchase. The ASROCK_RACK EPC612D4U Motherboard is available now for just £274.33 - perfect for those looking for a reliable, high-performance solution. Get yours today and see just how much it can do for you.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: Intel 2011
• Chipset: Intel C612 PCH
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 ECC Registered (Quad Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 2133/1866/1600 MHz
• Maximum Memory: 64GB
• Graphics: ASPEED AST2400
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: 2 x PCIe 3.0 x 16
  1 x PCIe 3.0 x 8
• PCI: -
• Storage: 8 x SATA III
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• USB Ports Supported: "4 x USB 3.0 ports (2 at back, 2 at mid-board)
  4 x USB 2.0 ports (2 at back, 2 at mid-board)
  1 x Type A USB 2.0 Port"
• Back Panel I/O Ports: 1 x D-Sub
  2 x USB 2.0 Port
  2 x USB 3.0 Port
  2 x Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
  1 x UID Button/UID LED
• Internal I/O Connectors: "1 x Auxiliary Panel
  1 x TPM
  1 x IPMB
  1 x CPU Fan, 5x system Fan
  1 x USB 3.0 Header
  1 x USB 2.0 Header
  1 x Type A USB 2.0 Port
  2 x BMC_SMBUS"
• Additional Features: See manufacturers link (next to product images)
• Package Type: Retail
• Package Weight: 1.3850 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
