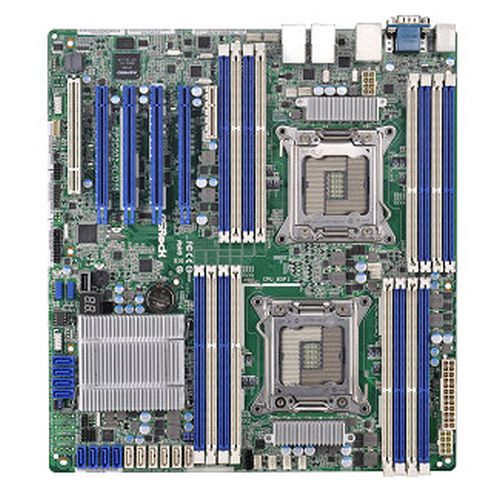

zero-2081-Asrock Rack EP2C602-4L/D16 Server Board

SSI EEB Server Motherboard

• Dual Socket R (LGA2011), supports Intel Xeon 5-1600/2600/4600 & v2 series
• Supports Quad Channel DDR3 1866 memory, 16 DIMM slots, Max. 512GB
• 4 PCIe 3.0 x16, 1 PCIe 3.0 x4, 1 PCI
• ASPEED AST2300 graphics, 1 VGA : D-Sub
• 8 SATA2 (3.0 Gb/s) by Intel C602, Supports RAID 0, 1, 5, 10
• 2 SATA3 (6.0 Gb/s) by Intel C602, Supports RAID 0, 1
• 7 USB 2.0 (2 from rear I/O, 4 from onboard headers, 1 Type A port)
• Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
• 4 Intel 82574L LAN, Support PCIE Quad Gigabit LAN

Introducing the ASROCK_RACK EP2C602-4L/D16 Server Board, an Intel C602 based motherboard designed for use in servers and workstations. Boasting a powerful 2011 Socket, a Quad GB LAN, and an IPMI LAN, this stylish motherboard is sure to make a great addition to any server build. The EP2C602-4L/D16 has several features that make it ideal for use in a server or workstation environment. A DDR3 RAM type with up to 512GB of RAM speed supports up to 16 DIMM slots, allowing for plenty of memory capacity. There are also two PCIe2/PCIe5 x16 mode slots, one PCIe3 x0/x8 mode slot, and one PCIe4 x16/x8 mode slot. This provides a total of six SATA III ports and 6 USB ports. This motherboard also features an impressive graphics card with an ASPEED AST2300 port and one VGA port. The EP2C602-4L/D16 also includes several powerful features designed for server use. The Marvell SE9230 and Intel C602 chipsets support RAID 0, 1, 10, NCQ, AHCI, and Hot Plug capabilities. There is also a dedicated IPMI LAN port for remote management of the server or workstation. Additionally, there are a number of other I/O connectors including a COM port header, auxiliary panel, thermal sensor, and 8 fan headings. The ASROCK_RACK EP2C602-4L/D16 motherboard is an incredible addition to any server or workstation build. With its powerful features and Intel C602 chipset, it provides unparalleled performance and reliability. Additionally, it comes with a 3 year warranty. And with a price tag of £293.77, it is a great value for money.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: SSI EEB
• Socket: Intel 2011
• Chipset: Intel C602
• #Hide#DDR Type: DDR3
• CPU Support: Click here for CPU support
• RAM Technology: DDR3 (Quad Channel)
• RAM Slots: 16 x DIMM
• RAM Speeds: 1866/1600/1333/1066 MHz
• Maximum Memory: 512GB
• Graphics: ASPEED AST2300
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: 2 x PCIe2/PCIe5 x16 mode
  1 x PCIe3 x0/x8 mode
  1 x PCIe4 x16/x8 mode
• PCI: -
• Storage: 6 x SATA III
• RAID: "Marvell SE9230: RAID 0, 1, 10, NCQ, AHCI and Hot Plug
  Intel C602: RAID 0, 1, 5, 10 and Intel Rapid Storage 3.0"
• Wireless: -
• LAN: Quad GB LAN & Dedicated IPMI LAN port
• Audio: -
• USB Ports Supported: "6 x USB 2.0 ports (2 at back, 4 at mid-board)
  1 x Type A USB 2.0 Port"
• Back Panel I/O Ports: 2 x PS/2 KB/Mouse
  1 x D-Sub
  2 x USB 2.0 Port
  4 x Lan Port
  1 x RJ45 Dedicated IPMI LAN port
  1 x Serial Port
• Internal I/O Connectors: 1 x COM Port Header
  1 x Auxiliary Panel
  1 x TPM
  1 x Thermal Sensor
  1 x IPMB
  1 x Buzzer
  8 x Fan
  1 x ATX Power
  2 x USB 2.0 Header
  1 x Type A USB 2.0 Port
  1 x Front Panel
  1 x Speaker
• .: 1 x Dr. Debug with LED
• Additional Features: See manufacturers link (next to product images)
• Package Type: Retail
• Package Weight: 2.3300 kg
• Warranty: 3 Years
• #Hide#No. LAN Ports: 4 x LAN
• #Hide#Max LAN Speed: GB LAN
