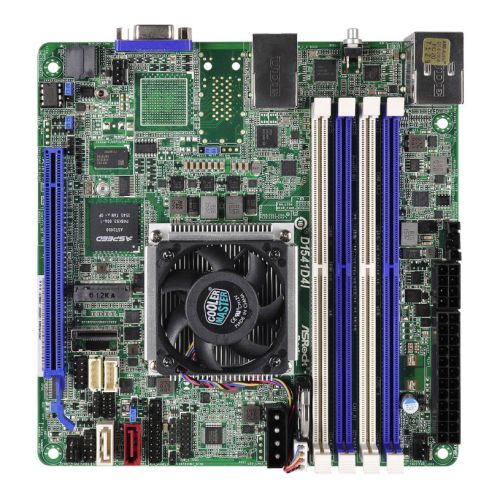

zero-2074-Asrock Rack D1541D4I Server Board

• Intel Xeon D1541 Processor
• Supports Dual channel DDR4 2133/1866 R DIMM max 64/128 GB
• Support 6 SATA3 by D1540
• Supports 1x PCIe 3.0 x16
• Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
• Supports 2 x GLAN by Intel i210

Introducing the ASROCK_RACK D1541D4I Server Board Are you looking for a powerful and reliable server board to power your server? The ASROCK_RACK D1541D4I Server Board is the perfect choice for you. This board is designed for the highest performance and reliability. The ASROCK_RACK D1541D4I Server Board is a Mini ITX form factor motherboard and comes with an integrated Intel Xeon D1541 processor, offering 8 cores and a speed of 2.10GHz (2.7 Turbo). It is also equipped with DDR4 RAM Technology and has 4 x DIMM slots, with RAM speeds up to 2400MHz. It also includes an ASPEED AST2400 graphics card, with DDR3 16MB SDRAM. The ASROCK_RACK D1541D4I Server Board is designed for maximum storage capabilities. It comes equipped with 6 x SATA3 III ports, 4 from Mini SAS, 1 that supports SATA DOM, and 1 x M.2 (2242/2280) - PCIe. You can also find 1 x VGA port, 2 x USB 3.1 Gen1 ports, and dual GB LAN & Dedicated IPMI LAN port, as well as a number of internal I/O connectors. This server board is also incredibly reliable and secure. It includes a number of features such as an UID Button/UID LED and a TPM, both of which provide extra layers of security. It also has a 3 year warranty for added peace of mind. For an all-in-one powerful and reliable server board, the ASROCK_RACK D1541D4I Server Board is the perfect choice. This board is available for £ 703.32 and is sure to provide all the power, performance, and reliability you need.

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Mini ITX
• Socket: Embedded CPU
• CPU: Integrated Intel Xeon D1541 Processor
  8-Core
  2.10GHz ( 2.7 Turbo)
• #Hide#DDR Type: DDR4
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: "Non-ECC UDIMM: 1600, 1866, 2133, 2400MHz
  ECC UDIMM: 1600, 1866, 2133, 2400MHz
  RDIMM: 1600, 1866, 2133, 2400MHz"
• Maximum Memory: 128GB
• Graphics: ASPEED AST2400
  DDR3 16MB SDRAM
• Graphics Ports: 1 x VGA
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 3.0 x 16
• Storage: " 6 x SATA3 III (4 port from mini SAS, 1 supports SATA DOM)
  1 x M.2 (2242/2280) - PCIe"
• Wireless: -
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• USB Ports Supported: 2 x USB 3.1 Gen1 ports (at back)
• Back Panel I/O Ports: 1 x VGA
  2 x USB 3.1 Gen1
  2 x GB LAN
  1 x UID Button/UID LED
• Internal I/O Connectors: 1 x COM
  1 x Auxiliary Panel
  1 x TPM
  1 x IPMB
  4 x Fan (1CPU/2Front/1Rear)
  1 x ATX (24-pin)
  1 x DC IN (8pin 12V)
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
