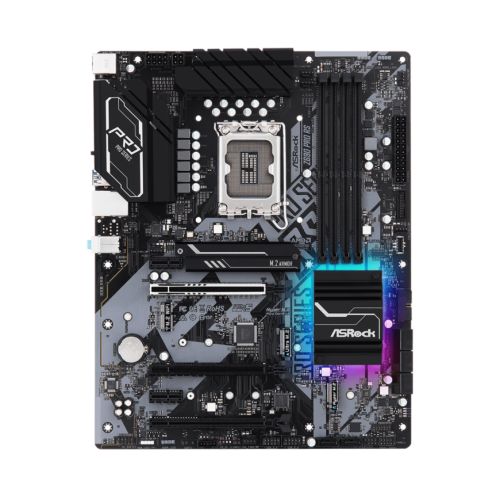

zero-2046-Asrock Z690 PRO RS

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.


• Supports 12th Gen Intel® Core™ Processors (LGA1700)
• 13 Phase Dr.MOS Power Design
• Supports DDR4 5000MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
• 1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 8 SATA3
• 2 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 1 USB 3.2 Gen2x2 Front Type-C
• 2 USB 3.2 Gen2 (Rear)
• 6 USB 3.2 Gen1 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• ASRock Graphics Card Holder

Optimised VRM Design

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

13 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

Asrock Z690 PRO RS Motherboard: Professional Grade Performance Are you looking for a reliable motherboard for your next build? Then say hello to Asrock's Z690 PRO RS Desktop Motherboard. Powered by the latest Intel Z690 chipset and sporting an Intel Socket 1700, this motherboard provides superior performance and an array of features. The Z690 PRO RS supports DDR4 memory and has 4 DIMMs, allowing for a maximum of 128GB of RAM. It offers excellent graphics support, with integrated graphics for the latest in visual performance, as well as 1 HDMI and 1 DisplayPort output. It also supports AMD Quad CrossFireX and CrossFireX for multi-GPU configurations and has 8 SATA3 III ports for plenty of storage. In addition, this board features a 2.5GB LAN port, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), and USB connectivity on both the back and front panel with 2 USB 3.2 Gen2 Type-A ports at the rear and 6 USB 3.2 Gen1 Type-A ports at the mid-board along with 6 USB 2.0 ports. There are also 3 PCIe 5.0 x16 slots, 2 PCIe 3.0 x1 slots, and 3 M.2 slots that are both SATA and PCIe compatible providing plenty of expansion options. The Z690 PRO RS also boasts a whopping three antenna mounting points, 1 PS/2 Mouse/Keyboard port, and 1 BIOS Flashback Button. Aesthetically, this motherboard comes with RGB LED lighting and a graphics card holder. At £164.03, the Asrock Z690 PRO RS is an excellent choice for a reliable, professional grade motherboard. It has all the features and ports you would need, and plenty of expandability for future upgrades. This board delivers unbeatable performance and features at an attractive price point.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z690
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5000+(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
• PCI/PCI Express: 3 x PCIe 5.0 x16
  2 x PCIe 3.0 x1
• Storage: 8 x SATA3 III
  1 x M.2 (2260/2280) - PCIe
  1 x M.2 (2260/2280) - SATA & PCIe
  1 x M.2 (2260/2280/22110) - PCIe
• RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
• Wireless: -
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
  6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: 3 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 3.2 Gen2
  2 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  1 x BIOS Flashback Button
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x RGB LED
  3 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Panel Audio
  1 x Thunderbolt AIC
• .: 2 x USB 2.0
  2 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2x2
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  4 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket
  1 x Graphics Card Holder"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.9000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
