zero-2028-Asrock X670E STEEL LEGEND

PRODUCT CODE:    ASMBX670ESTEELLEGEND

MANUFACTURER:    ASROCK

CATEGORY:    Motherboards

£ 256.498 Last stock amount = 90

X670E Steel Legend

  • Supports AMD Ryzen™ 7000 Series Processors
  • 16+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6600+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
  • 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front)
  • Realtek 2.5G LAN, Realtek 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth


Vist our online store for availability and uptodate pricing

Zero42 ONLINE SHOP

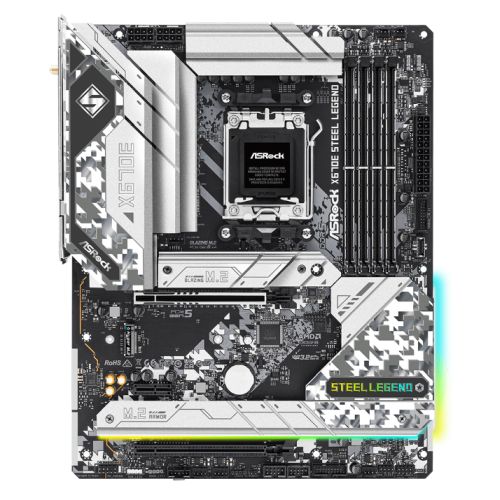

Photograph of zero-2028-Asrock X670E STEEL LEGEND




X670E Steel Legend


  • Supports AMD Ryzen™ 7000 Series Processors
  • 16+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6600+(OC)
  • 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: 1 HDMI, 1 DisplayPort
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3
  • 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front)
  • Realtek 2.5G LAN, Realtek 1G LAN
  • 802.11ax Wi-Fi 6E + Bluetooth




Optimized VRM Design

SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.


16+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.





Server Grade Low Loss PCB

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.





Optimized VRM Design

8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.


2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.





DDR5 Memory with Protection Circuit

Reinforced DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.


DIY Friendly Design
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.





Nahimic Audio

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Static Noise Suppression
  • Echo Cancellation
  • Lateral Sound Cancellation
  • Voice Stabilizer

Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.


Works onany devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.





ASRock Graphics Card Holder

Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.





Polychrome RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





High Speed M.2 Solution

PCIe Gen5 x4 for SSD
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.


XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.


Anti-Drop Screw
Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.





Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.





Wireless Networking

Wi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.


M.2 Key-E Module Cap
SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.





Front USB 3.2 Gen2x2 Type-C

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.





EZ Setting

Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the
operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!


BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.


Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.



The Asrock X670E STEEL LEGEND Motherboard is the perfect choice for any PC enthusiast or gamer looking for reliable performance. This AMD-based motherboard is designed with a range of high-end features that make it a great all-rounder for gaming, streaming, and multitasking. The X670E STEEL LEGEND comes with a range of impressive specifications including AMD X670 chipset, ATX form factor, 4 DDR5 RAM slots, HDMI, DisplayPort, Wi-Fi 6E, Gigabit and 2.5G LAN, PCIe5, and four M.2 slots. This combination of features makes it ideal for a wide range of applications and tasks. In terms of performance, the X670E STEEL LEGEND supports up to a maximum of 128GB DDR5 RAM and is also compatible with AMD Crossfire for multiple graphics card support. Other features include integrated AMD RDNA 2 graphics, four SATA III ports, two M.2 slots (PCIe), two M.2 slots (PCIe) and one M.2 slot (PCIe), and two RJ-45 LAN ports. The onboard audio solution is also impressive and comes with 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec). The onboard wireless connectivity includes a 802.11ax Wi-Fi 6E module with dual-band 2x2 w/ extended 6GHz band support, two antennas, and support for MU-MIMO. The X670E STEEL LEGEND also comes with a variety of USB ports, including one USB 3.2 Gen2x2 Type-C (at the back), one USB 3.2 Gen2 Type-A (at the back), ten USB 3.2 Gen1 (six at the back, four at mid-board), and eight USB 2.0 (four at the back, four at mid-board). The X670E STEEL LEGEND is fully compatible with AMD's Ryzen 5000 series CPUs and also features an out-of-the-box RGB lighting system. Asrock provide a three-year replacement warranty with the X670E STEEL LEGEND motherboard for peace of mind. The ASROCK X670E STEEL LEGEND is an innovative, powerful, and reliable motherboard at an affordable price of £256.50. Whether you are looking for a new motherboard for a gaming PC build, a high-performance workstation, or simply a reliable motherboard for everyday use, the X670E STEEL LEGEND is the perfect choice.

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM5
  • Chipset: AMD X670
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 6600+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated AMD RDNA 2 graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort 1.4
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
    1 x PCIe 3.0 x16 (supports x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2260/2280) - PCIe
    1 x M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2230/2242/2260/2280) - PCIe
    1 x M.2 (2260/2280) - PCIe
  • RAID: "Supports RAID 0, 1 and 10 for SATA storage devices
    Supports RAID 0, 1 and 10 for M.2 NVMe storage devices"
  • Wireless: 802.11ax Wi-Fi 6E Module
    Supports IEEE 802.11a/b/g/n/ac/ax
    Supports Dual-Band 2x2 w/ extended 6GHz band support
    2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
    Supports Bluetooth + High speed class II
    Supports MU-MIMO
  • LAN: 2.5GB LAN & GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-A (at back)
    10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)
    8 x USB 2.0 (4 at back, 4 at mid-board)
    1 x Front Panel Type C USB 3.2 Gen2x2 Header"
  • Back Panel I/O Ports: 2 x Antenna
    1 x HDMI
    1 x DisplayPort 1.4
    1 x Optical SPDIF Out
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen2 Type-A
    6 x USB 3.2 Gen1
    4 x USB 2.0
    2 x RJ-45 LAN
    1 x BIOS Flashback Button
    1 x Line Out Jack
    1 x Microphone Input Jack
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x RGB LED
    3 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    4 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    2 x 8 pin 12V
    1 x Front Panel Audio
    1 x Thunderbolt AIC (5-pin)
    2 x USB 2.0
  • .: 2 x USB 3.2 Gen1
    1 x Front Panel Type C USB 3.2 Gen2x2
  • Accessories: 1 x User Manual
    2 x SATA Data Cables
    1 x ASRock WiFi 2.4/5/6 GHz Antenna
    4 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
    1 x Graphics Card Holder
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.5380 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 2 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
