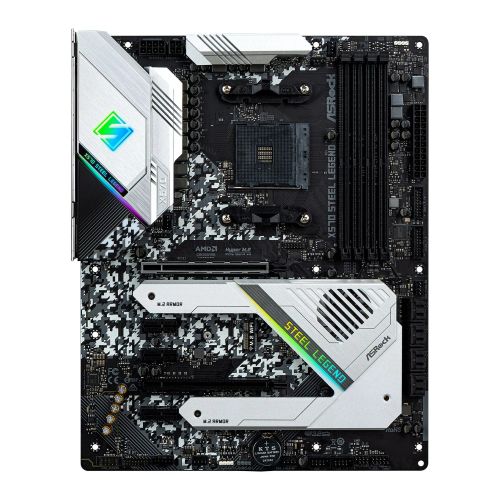

zero-2021-Asrock X570 STEEL LEGEND

• Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
• 10 Power Phase Design
• Supports DDR4 4666+ (OC)
• 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
• AMD Quad CrossFireX™ and CrossFireX™
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
• 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
• 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
• Intel® Gigabit LAN
• ASRock Polychrome SYNC

Introducing the ASROCK X570 STEEL LEGEND – The Rock-Solidly Durable Motherboard ASROCK’s X570 STEEL LEGEND is an AMD X570 motherboard, designed for use with the AM4 socket. This powerful motherboard is available at a price of £174.77 and offers a wealth of features for hardcore gamers, allowing them to get the most out of the system. The X570 STEEL LEGEND has a form factor of ATX, meaning it will fit perfect in any ATX-compatible computer case. It features 4 DDR4 memory slots and integrated AMD Radeon Vega Series Graphics for smooth gaming performance. For multi-GPU support, it has four PCI Express 4.0 x16 slots and three PCI Express 4.0 x1 slots. Storage-wise, the X570 STEEL LEGEND has 8 SATA III ports, 1 Hyper M.2 port (2230/2242/2260/2280), and 1 Hyper M.2 port (2230/2242/2260/2280/22110) SATA & PCIe. It also has support for RAID 0, 1, and 10. Connectivity-wise, the X570 STEEL LEGEND has 2 USB 3.2 Gen2 Type-A & C ports, 8 USB 3.2 Gen1 ports (6 at back, 2 at mid-board), and 4 USB 2.0 ports (at mid-board). It also has 1 HDMI port, 1 DisplayPort 1.2, and 1 GB LAN port for network connection. In addition, the X570 STEEL LEGEND has a number of other features, such as 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), RGB LED lighting, and a Rock-Solid Durability MSI Armor 2 thermal design. This ensures that your system is well-cooled and offers optimal performance. Overall, the X570 STEEL LEGEND is a great choice for those looking for an AMD X570 motherboard, and offers a wealth of features at a reasonable price. With its rock-solid durability and great connectivity options, the X570 STEEL LEGEND is sure to satisfy even the most demanding gamers.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM4
• Chipset: AMD X570
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: AMD Ryzen series CPUs (Matisse)
  DDR4 4666+(OC)/4400(OC)/
  4300(OC)/4266(OC)/4200(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/ 2133

  AMD Ryzen series CPUs (Pinnacle Ridge)
  DDR4 3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133

  AMD Ryzen series CPUs (Picasso)
  DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133
• Maximum Memory: 128GB
• Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.2
• Multi-GPU Support: Supports AMD Quad CrossFireX
• PCI/PCI Express: AMD Ryzen series CPUs (Matisse)
  2 x PCI Express 4.0 x16

  AMD Ryzen series CPUs (Pinnacle Ridge)
  2 x PCI Express 3.0 x16

  AMD Ryzen series CPUs (Picasso)
  2 x PCI Express 3.0 x16
  3 x PCI Express 4.0 x1
• PCI: -
• Storage: 8 x SATA III
  1 x Hyper M.2 ( 2230/2242/2260/2280) - PCIe
  1 x Hyper M.2 (2230/2242/2260/2280/22110) SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• USB Ports Supported: "2 x USB 3.2 Gen2 Type-A & C (at back)
  8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
  4 x USB 2.0 (at mid-board)"
• Back Panel I/O Ports: 2 x Antenna
  1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.2
  1 x Optical SPDIF Out
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  6 x USB 3.2 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  1 x AMD Fan LED
  1 x RGB LED
  1 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Audio
• .: 1 x AMD LED Fan USB
  1 x Thunderbolt AIC
  2 x USB 2.0
  2 x USB 3.2 Gen1
• Accessories: "Quick Installation Guide, Support CD
  4 x SATA Data Cables
  3 x Screws for M.2 Sockets
  2 x Standoffs for M.2 Sockets"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.2000 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
