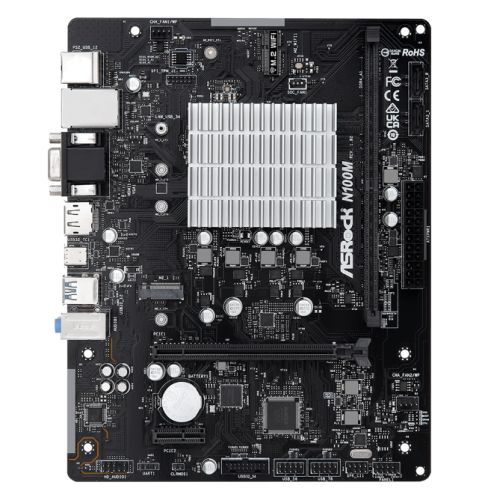

zero-2010-Asrock N100M

N100M

• Intel® Quad-Core Processor N100 (up to 3.4 GHz)
• Supports 1 DDR4 DIMM
• 1 PCIe 3.0 x16 (x2 mode), 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: D-Sub, HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec
• 2 SATA3, 1 M.2 (PCIe Gen3x2)
• 1 USB 3.2 Gen2 Type-C (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer

Introducing the Asrock N100M Motherboard Are you in the market for a low cost, efficient, and powerful motherboard? Look no further than the Asrock N100M Motherboard. Boasting an integrated Intel Quad-Core N100, this Micro ATX motherboard is designed for maximum performance with a fanless design. For a great price of £94.79, the N100M gives you the perfect balance between affordability and quality. The Asrock N100M is equipped with a DDR4 RAM slot and supports a maximum memory of 32GB. It is also equipped with integrated Intel UHD Graphics and 24 EUs inside with up to 750MHz. Furthermore, this motherboard is equipped with 1 VGA, 1 HDMI, and 1 DisplayPort for a range of display options. In terms of storage, you can enjoy the benefit of 2 SATA III ports and 1 M.2 slot that supports 2242/2260/2280. As for USB ports, you have a number of options, including 1 USB 3.2 Gen2 Type-C at the rear, 2 USB 3.2 Gen1, and 4 USB 2.0. Additionally, the 7.1 CH HD Audio (Realtek ALC897 Audio Codec) will provide your system with rich and clear sound. Asrock has equipped the N100M with a number of other great features, such as 1 SPI TPM, 1 Chassis Intrusion and Speaker, 2 Chassis/Water Pump Fan, 1 24 pin ATX, and 1 Front Panel Audio. It also comes with a range of accessories, such as 1 User Manual, 1 I/O Shield, 2 SATA Data Cables, and 2 Screws for M.2 Sockets. The N100M also has a 3 Year Replacement Warranty. In conclusion, the Asrock N100M Motherboard is the ideal solution for those who want a powerful and efficient motherboard for an affordable price. With an integrated Intel Quad-Core N100 and great features, you can enjoy a stable and reliable system.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Embedded CPU
• CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
• #Hide#DDR Type: DDR4
• CPU Support: N/A (Integrated CPU)
• RAM Technology: "DDR4 non-ECC, un-buffered"
• RAM Slots: 1 x DIMM
• RAM Speeds: Up to 3200MHz
• Maximum Memory: 32GB
• Graphics: Integrated Intel UHD Graphics
  24 EUs inside (Up to 750MHz)
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DiisplayPort
• PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x2 mode)
  1 x PCIe 3.0 x1
• Storage: 2 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 3.0 x2
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: Rear:
  1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1
  4 x USB 2.0

  Front:
  2 x USB 3.2 Gen1
  4 x USB 2.0
• Back Panel I/O Ports: 2 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x D-Sub
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1
  4 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  2 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: 1 x User Manual
  1 x I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0700 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
