zero-1994-Asrock H610M-HDV

H610M-HDV


• Supports 12th Gen Intel® Core™ Processors (LGA1700)
• 5 Phase Power Design
• Supports DDR4 3200MHz
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec
• 4 SATA3
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek Gigabit LAN

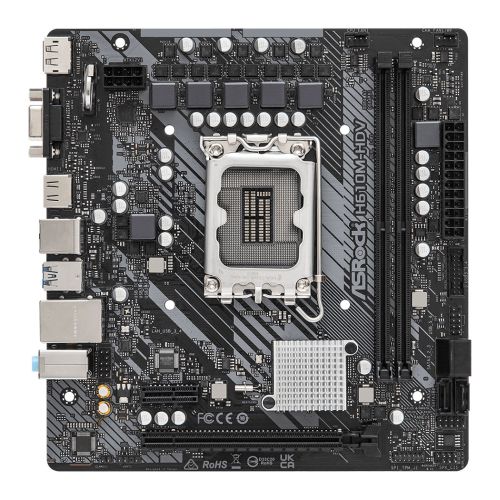

Introducing the Asrock H610M-HDV Motherboard The Asrock H610M-HDV is a Micro ATX Motherboard that supports the Intel H610 chipset and Intel 1700 socket. It is a reliable and cost-effective way to upgrade your desktop with the latest features and performance. The motherboard provides two DDR4 slots, VGA, HDMI, DP, PCIe4, and other features for a competitive price of £57.83. Design The H610M-HDV has a Micro ATX form factor and is designed for non-gaming desktop computers. It is a versatile and reliable motherboard that supports a variety of Intel-based processors. The board has two DDR4 RAM slots, four SATA III ports, and supports up to 64GB of RAM. It has a single PCIe 4.0 x16 slot and one PCIe 3.0 3x1 slot, which is perfect for adding graphics cards or other components. It also has an integrated graphics processor, so it can be used with integrated graphics systems. Connectivity The Asrock H610M-HDV Motherboard offers a wealth of connectivity options. It has a single VGA port, 1 HDMI port, 1 DisplayPort port, 4 USB 3.2 Gen1 Type-A ports (2 at the back and 2 at mid-board), 6 USB2.0 ports (4 at back and 2 at mid-board), 1 PS/2 Mouse/Keyboard port, 1 RJ-45 LAN port, and HD Audio jacks. Performance The Asrock H610M-HDV Motherboard is capable of delivering dependable performance for everyday computing tasks. It has an integrated graphics processor and supports CPU speeds of up to 3200 MHz. It also features 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) for reliable and immersive audio. Conclusion The Asrock H610M-HDV Motherboard provides an economical and reliable way to upgrade your desktop computer. It supports a variety of Intel-based processors, has two DDR4 RAM slots, and provides plenty of connectivity options. It also comes with a 2 Year Replacement Warranty, so you can be sure that your investment is protected. Pick up the Asrock H610M-HDV Motherboard today and unlock a wealth of features and performance for a competitive price.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 3200 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 3x1
• Storage: 4 x SATA III
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
• USB Ports Supported: "4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
  6 x USB 2.0 (4 at back, 2 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  1 x D-Sub
  1 x HDMI
  1 x DisplayPort 1.4
  2 x USB 3.2 Gen1
  4 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  1 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  1 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7080 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
