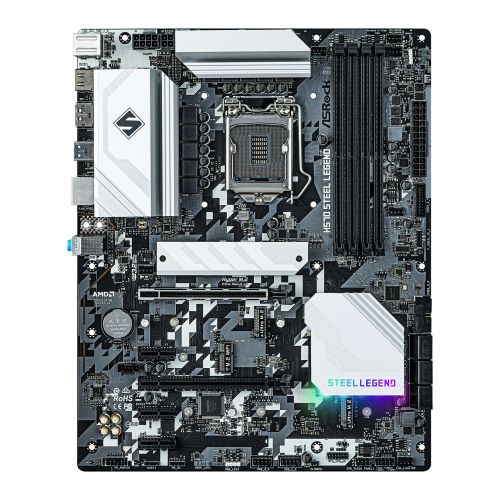

zero-1992-Asrock H570 STEEL LEGEND

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.


• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
• 8 Phase Power Design
• Supports DDR4 4800MHz (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x PCIe 3.0 x1
• 1 x M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
• 2 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 1 x USB 3.2 Gen2x2 Front Type-C (20Gb/s)
• Rear USB 3.2 Gen2 Type A+C (10Gb/s)
• 6 x USB 3.2 Gen1 (2 x Rear, 4 x Front)
• 6 x USB 2.0 (2 x Rear, 4 x Front)
• Dragon 2.5 Gigabit LAN
• ASRock Polychrome SYNC

• The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
• Extra anchor points
• Stronger latch
• Ensure signal stability
• Make sure heavy graphics cards to be well-installed.

Introducing the ASROCK H570 Steel Legend Motherboard ASROCK has been leading the industry in quality and innovation for over two decades now and their H570 Steel Legend motherboard is no exception. This Intel H570, ATX motherboard is built for speed and performance, featuring four DDR4 RAM slots, dual channel support for up to 4800+(OC) speeds, integrated graphics, and XFire support. The H570 Steel Legend comes equipped with a plethora of ports, including HDMI, DisplayPort, two USB 3.2 Gen2 ports, six USB 3.2 Gen1 ports, and two USB 2.0 ports. It also has six SATA III slots, three PCIe slots, three M.2 slots, and 2.5GB LAN for exceptional connectivity. For those who need a bit of extra flair, the board features out of the box RGB lighting to get your system looking as great as it performs. The H570 Steel Legend also offers several additional features, including support for RAID, SPI TPM, a power LED and speaker, four fan connectors, and a USB 3.2 Gen2x2 connector Type-C at mid-board. The board comes with a three year replacement warranty and all the necessary accessories to get you up and running in no time. At a cost of just £120.55, the ASROCK H570 Steel Legend Motherboard is a great choice for gamers, enthusiasts, and anyone looking for a reliable, high-performance rig. With its industry leading features, unbeatable performance, and attractive price tag, it is easy to see why the ASROCK H570 Steel Legend Motherboard is considered one of the best motherboards on the market today.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1200 - Rocket Lake
• Chipset: Intel H570
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 4800+(OC)
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort 1.4
• Multi-GPU Support: Supports AMD Quad CrossFireX
• PCI/PCI Express: 1 x PCIe 4.0 x16
  1 x PCIe 3.0 x16
  3 x PCIe 3.0 x1
• Storage: 6 x SATA III
  1 x M.2 (2260/2280) - PCIe
  1 x M.2 (2260/2280) - SATA & PCIe
  1 x M.2 (2260/2280/22110) - SATA & PCIe
• RAID: "RAID 0, 1, 5, 10"
• Wireless: -
• LAN: 2.5GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
  6 x USB 3.2 Gen1 (2 at back, 4 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 connector Type-C at mid-board"
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen2 Type-A
  1 x USB 3.2 Gen2 Type-C
  2 x USB 3.2 Gen1
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Power LED and Speaker
  2 x RGB LED
  2 x Addressable LED
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  4 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x 4 pin 12V
  1 x Front Audio
  1 x Thunderbolt AIC
• .: 2 x USB 2.0
  2 x USB 3.2 Gen1
  1 x Front Panel Type C USB 3.2 Gen2x2 Header
• Accessories: 2 x SATA Data Cables
  4 x Screws for M.2 Sockets
  1 x Standoff for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.9800 kg
• Warranty: 3 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#RGB Lighting: Out of the box RGB lighting
