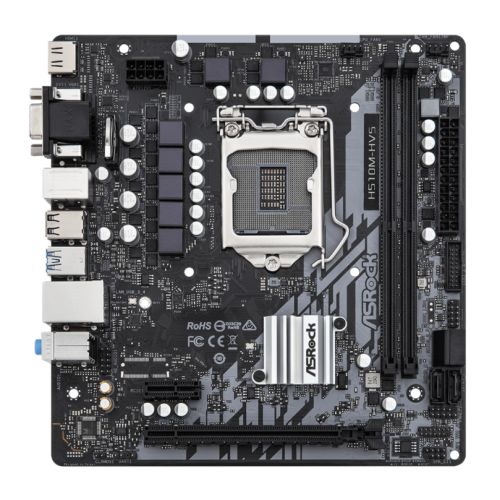

zero-1989-Asrock H510M-HVS R2.0
PRODUCT CODE: ASMBH510MHVSR2
MANUFACTURER: ASROCK
CATEGORY: Motherboards
£ 49.346 Last stock amount = 40
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz*
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/ 897 Audio Codec)
- 4 SATA3
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
Vist our online store for availability and uptodate pricing
Zero42 ONLINE SHOP
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz*
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/ 897 Audio Codec)
- 4 SATA3
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
High Density Glass Fabric PCB
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Introducing the ASROCK H510M-HVS R2.0 Motherboard Are you looking to upgrade your system with a powerful motherboard that won’t break the bank? Look no further than the ASROCK H510M-HVS R2.0 Motherboard. With its attractive price tag of £49.35, this motherboard promises to deliver the performance you need and the features you want without having to spend a fortune. ASROCK is a leader in the computer hardware industry, and this motherboard is no exception. It is both desktop-friendly and micro ATX, making it ideal for those looking for an upgrade that can fit into a smaller case if needed. It is powered by Intel H510 chipset and Intel 1200 socket, and supports up to 64GB of DDR4 memory in two slots. The integrated graphics support VGA and HDMI outputs, giving you plenty of options for connecting your display. In terms of storage, the ASROCK H510M-HVS R2.0 Motherboard has four SATA III ports, as well as one PCIe 4.0 x16 and one PCIe 3.0 x1 slot. Additionally, you get seven USB ports – two of them USB 3.2 Gen1 at the back and four USB 2.0 at the mid-board – and one gigabit LAN port. Audio is also covered with 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec). In terms of additional features, this motherboard offers a SPI TPM and chassis intrusion sensor, as well as fan headers for both CPU and chassis/water pump fans. With its attractive price and great range of features, the ASROCK H510M-HVS R2.0 Motherboard is an excellent choice for anyone looking to upgrade to a powerful and feature-packed motherboard.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1200 - Rocket Lake
- Chipset: Intel H510
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x VGA
1 x HDMI - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x1 - Storage: 4 x SATA III
- RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- USB Ports Supported: "4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x D-Sub
1 x HDMI
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan (4-pin)
1 x Chassis/Water Pump Fan
1 x 24 pin ATX Power
1 x 8 pin 12V Power
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1 Type-A - Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.7700 kg
- Warranty: 2 Year Replacement Warranty
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
