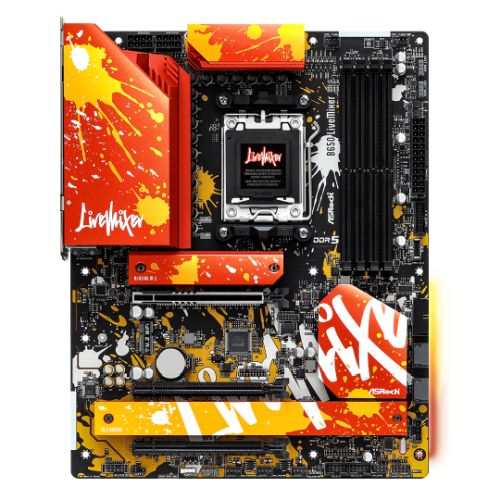

zero-1951-Asrock B650 LIVEMIXER
PRODUCT CODE: ASMBB650LIVEMIXER
MANUFACTURER: ASROCK
CATEGORY: Motherboards
£ 174.405 Last stock amount = 92
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400+(OC)
- 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
- 2 Hyper M.2 (PCIe Gen4x4),
- 2 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front),
- 1 USB 3.2 Gen2 Type-C (Rear),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 8 USB 3.2 Gen1 (4 Rear, 4 Front),
- 12 USB 2.0 (8 Rear, 4 Front)
- Realtek 2.5G LAN
Vist our online store for availability and uptodate pricing
Zero42 ONLINE SHOP
LiveMixer is designed through current-gen content creators, who need motherboards with great connectivity for streaming and other auxiliary devices. Also, its reliable performance allows us to provide wonderful contents and budget our time.
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6400+(OC)
- 3 PCIe 4.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4),
- 2 Hyper M.2 (PCIe Gen4x4),
- 2 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front),
- 1 USB 3.2 Gen2 Type-C (Rear),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 8 USB 3.2 Gen1 (4 Rear, 4 Front),
- 12 USB 2.0 (8 Rear, 4 Front)
- Realtek 2.5G LAN
Users will never run short. Hook up every peripheral, whether it’s mice, keyboards, microphones, headsets, multiple cameras, fill-lights, macropads, and much more.
Various content creator needs motherboards with superb reliability, cutting-edge performance and an extended connectivity mix for the many auxiliary devices.
- Content Creator
- Video Editing
- Photo Editor
- Game Development
We tested many video capture devices with different interfaces in order to provide the most stable system for content creators.
Effectiveness and Uniqueness
Provides stability and unique features enhancing effectiveness.
- 14 + 2 + 1 power phase with Smart Power Stage(SPS) and Nichicon 12K capacity - Optimized VRM design for solid performance
- Blazing M.2[PCIe Gen5 x4] - Blazing Fast Data Transfer and Great Heat Dissipation
- DDR5 EXPO & XMP Support - Extreme Memory Overclocking
- Blazing OC Tuner - Extreme CPU Overclocking
- Lightning Gaming Ports - Mice/Keyboard control with lower jitter and latency
- Ultra USB Power - Stable power and better sound experience!
- Dual PCIe x4 Slots & Thunderbolt Header - Provides great connectivity for the use of capture card and Thunderbolt AIC at the same time.
- 8 Layers PCB - Thermal and Performance Optimized
- DDR5 Memory - Supports DDR5 memory with max. 128GB capacity.
- 23 USB Ports - Provides great connectivity to multiple USB devices.
- Dragon 2.5G LAN - Fulfills requirement of content creators and high-quality streaming media.
- Polychrome Sync - Allows users to synchronize RGB LED devices and create their own unique lighting effects.
- Nahimic Audio - Offers you the most engaging listening experience, vibrant and rich with details.
- Auto Driver Installer - Allow users to download and install all necessary drivers automatically.
Introducing the ASRock B650 LIVEMIXER Motherboard The ASRock B650 LIVEMIXER is the perfect motherboard for those looking for a top of the range piece of kit. With features such as a form factor of ATX, Socket of AMD AM5 and Chipset of AMD B650, its no wonder enthusiasts have been waiting for this one to launch. The ASRock B650 LIVEMIXER is capable of supporting up to 128GB of DDR5 RAM, with a maximum speed of 6400+. It supports integrated graphics and also has the ability to support multi-GPU with AMD CrossFire. Regarding storage, this motherboard supports 2 x SATA III, and 3 x M.2 slots, one of which is PCIe4. It also comes with a range of I/O ports, such as HDMI, DisplayPort, USB 3.2 Gen2 and USB 2.0. Another great feature of the ASRock B650 LIVEMIXER is its 2.5GB LAN port, which provides reliable and speedy connection. It also comes with 7.1 CH HD Audio (Realtek ALC897 Audio Codec), ensuring a rich and high definition sound experience. On top of this, it also has RGB lighting for personalised and customisable aesthetics. The package includes a user manual, two SATA data cables, four screws for M.2 sockets and a standoff for the M.2 socket. It also comes with a 3 year replacement warranty, meaning you can have peace of mind knowing that your investment is safe. An amazing piece of kit at an amazing price, the ASRock B650 LIVEMIXER retails for £174.41 and is worth every penny. Get it now before its too late!
Description
Specification
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM5
- Chipset: AMD B650
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: DDR5 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 6400+(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD CrossFire
- PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x4 mode) - Storage: 2 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe - RAID: "Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices" - Wireless: -
- LAN: 2.5GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 (4 at back*, 4 at mid-board)
12 x USB 2.0 (8 at back, 4 at mid-board)
1 x Front USB 3.2 Gen2x2 Type-C connector
*USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power" - Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
8 x USB 2.0 Ports
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack - Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0 - .: 2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2 - Accessories: 1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket - Additional Features: See Overview / Video
- Package Type: Retail
- Package Weight: 2.5000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#RGB Lighting: Out of the box RGB lighting
