zero-1948-Asrock B560M-HDV R3.0

PRODUCT CODE:    ASMBB560MHDVR3

MANUFACTURER:    ASROCK

CATEGORY:    Motherboards

£ 49.291 Last stock amount = 74

  B560M-HDV R3.0

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • Supports DDR4 4000+ MHz (OC)
  • 1 x PCIe 4.0 x16*, 1 x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • 4 SATA3
  • 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer


Vist our online store for availability and uptodate pricing

Zero42 ONLINE SHOP

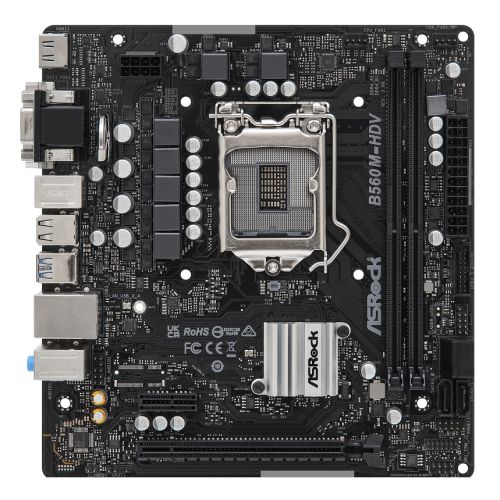

Photograph of zero-1948-Asrock B560M-HDV R3.0





B560M-HDV R3.0


  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
  • Supports DDR4 4000+ MHz (OC)
  • 1 x PCIe 4.0 x16*, 1 x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • 4 SATA3
  • 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer




Premium 50A Power Choke

ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Clever Access Memory

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.





Base Frequency Boost (BFB) Technology

Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.

While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.





3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!





Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.




Introducing the Asrock B560M-HDV R3.0 Motherboard The Asrock B560M-HDV R3.0 motherboard is an excellent choice for anyone looking for a quality motherboard to build or upgrade their PC. This motherboard is an Intel B560 chipset with 1200 socket, Micro ATX form factor, capable of handling up to 2 DDR4 slots, and has VGA, DVI, and HDMI outputs. It is available for an affordable price of £49.29. For starters, the Intel B560 chipset allows for support of 10th Gen Intel Core processors and 11th Gen Intel Core Processors, making it a powerful choice. Additionally, the motherboard is compatible with up to 64GB of DDR4 RAM, allowing for a fast and reliable system to run a variety of programs and applications. The Asrock B560M-HDV R3.0 also offers an array of output options that allow you to connect your PC to several displays. The two VGA, DVI, and HDMI ports allow for connecting up to three monitors for a more immersive gaming or viewing experience. Additionally, there are four SATA III slots, allowing for increased storage capacity. The motherboard also features integrated graphics that are compatible with various CPUs, and it also comes with several USB and audio ports. The two USB 3.2 Gen1 type-A ports and two USB 2.0 ports offer fast data transfer speeds and allow you to connect your devices with ease. There is also an onboard 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) for immersive sound. In addition, the Asrock B560M-HDV R3.0 motherboard comes with plenty of additional features and accessories to make upgrading or building your PC easy. The package includes a User Manual, Support CD, I/O Shield, and two SATA Data Cables. The motherboard also comes with a two year replacement warranty, giving you peace of mind. Overall, the Asrock B560M-HDV R3.0 is an excellent choice for anyone looking for a quality motherboard at an affordable price. It offers plenty of features, including support for up to 64GB of DDR4 RAM, integrated graphics compatible with most CPUs, and several USB and audio ports. The package also comes with several additional features and accessories, giving you everything you need to build or upgrade your PC.

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: Intel 1200 - Rocket Lake
  • Chipset: Intel B560
  • #Hide#DDR Type: DDR4
  • CPU Support: Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: 11th Gen CPUs: up to 4000+(OC)
    10th Gen CPUs: up to 3600+(OC)
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • PCI/PCI Express: 1 x PCIe 4.0 x16
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    No M.2 Slots
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • USB Ports Supported: Rear:
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0

    Front:
    2 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
  • Back Panel I/O Ports: 1 x PS/2 Keyboard
    1 x PS/2 Mouse
    1 x D-Sub
    1 x DVI-D
    1 x HDMI
    2 x USB 3.2 Gen1
    4 x USB 2.0
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Chassis Intrusion and Speaker
    1 x CPU Fan
    1 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: "User Manual, Support CD, I/O Shield
    2 x SATA Data Cables"
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.7000 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
