zero-1934-Asrock B550 PHANTOM GAMING-ITX/AX

PRODUCT CODE: ASMBB550PGAMINGITXAX

MANUFACTURER: ASROCK

CATEGORY: Motherboards

£ 149.226 Last stock amount = 29

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
8 Power Phase Design, Digi Power, 90A Dr.MOS
Supports DDR4 5400+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
Intel 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1

Extra anchor points

Stronger latch

Ensure signal stability

Make sure heavy graphics cards to be well-installed.

Vist our online store for availability and uptodate pricing

Zero42 ONLINE SHOP

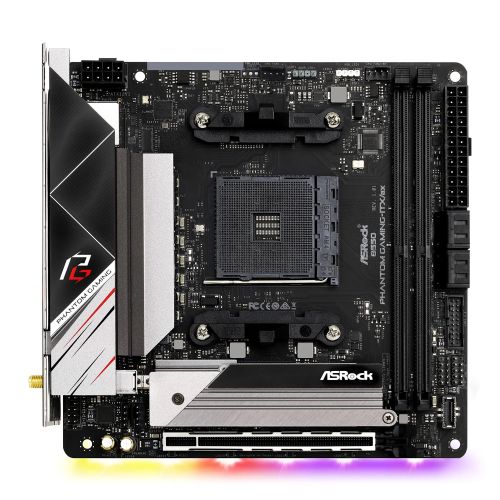

Photograph of zero-1934-Asrock B550 PHANTOM GAMING-ITX/AX

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
8 Power Phase Design, Digi Power, 90A Dr.MOS
Supports DDR4 5400+ (OC)
1 PCIe 4.0 x16
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
Intel 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1

Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

90A Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Compared to traditional chokes, ASRock's premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

8LAYER & 2OZ COPPER PCB

The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Wi-Fi 6 802.11ax

Welcome to the new Wi-Fi standard! ASRock's motherboard equipped with next generation Intel Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

Intel 2.5G LAN

The 2.5G Ethernet configuration were introduced to support higher bandwidth on widely deployed CAT5e and CAT6 cabling in enterprise and metro area networks. The industry's leading Intel LAN always provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:

Extra anchor points
Stronger latch
Ensure signal stability
Make sure heavy graphics cards to be well-installed.

A SOLID M.2-SOLUTION PERFORMER

Dual M.2 For SSD, Supports Type 22110 M.2

Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while Ultra M.2 socket is capable of running PCIe Gen3 x4 and SATA3 mode.

M.2 Armors

Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

Super Alloy Motherboard

XXL Aluminum Alloy Heatsink

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 90A continuous current for each phase, thus providing improved thermal result and superior performance.

Premium 90A Power Choke

Matte Black PCB

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Introducing the ASROCK B550 PHANTOM GAMING-ITX/AX Motherboard The ASROCK B550 PHANTOM GAMING-ITX/AX motherboard is the perfect choice for users looking for a powerful, efficient and aesthetically pleasing motherboard. This Mini ITX board is packed with features, including a AMD B550 chipset, two DDR4 slots, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB lighting and two M.2 slots. All of this is available for just £149.23. The board supports both a 2x DIMM DDR4 RAM slot, allowing you to go up to 64GB of RAM and a PCIe 4.0 x16 slot, supporting up to two GPUs for maximum performance. In addition to this, you have four SATA3 slots for storage and two M.2 slots, one supporting PCIe and one supporting SATA. The integrated Intel 802.11ax WiFi module supports the latest Wi-Fi standards, including dual-band support. This board also includes an integrated graphics processor, one HDMI port and one DisplayPort 1.4 port, both of which support up to 4K resolution displays. As well as this, the board has an array of ports, including two USB 3.2 Gen2 (Type-A & Type-C at back) ports, six USB 3.2 Gen1 (4 at back, 2 at mid-board) ports and two USB2.0 (at mid-board) ports. The board also includes an impressive audio system, with 7.1CH HD audio with content protection, two antenna ports and HD audio jacks, for superior sound quality. As well as this, there is an RGB LED and addressable LED, as well as a CPU fan, CPU/water pump fan and chassis/water pump fan, so you can stay cool. The board also supports a range of additional features, including RAID 0, 1 and 10 and out of the box RGB lighting. As well as this, you also get a quick installation guide and support CD, along with two SATA data cables and an ASRock WiFi 2.4/5 GHz antenna. Overall, the ASROCK B550 PHANTOM GAMING-ITX/AX motherboard represents a great choice for gamers, enthusiasts and professionals alike. With its impressive range of features, as well as its 2 year replacement warranty, you can be sure that this board will last many years to come.

Description

Specification

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: AMD AM4
Chipset: AMD B550
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: 5400+(OC) / 5300(OC) / 5200(OC) / 5100(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum Memory: 64GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort 1.4
Multi-GPU Support: -
PCI/PCI Express: 1 x PCIe 4.0 x16
Storage: 4 x SATA3 III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports WiFi6 802.11ax (2.4Gbps)
2 antennas - support 2 (Transmit) x 2 (Receive)
Supports Bluetooth 5.1
Supports MU-MIMO
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio with Content Protection
USB Ports Supported: "2 x USB 3.2 Gen2 (Type-A & Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
2 x USB 2.0 (at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header
"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2 Header
Accessories: "Quick Installation Guide, Support CD
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5 GHz Antenna
1 x Screw for M.2 Socket"
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.1700 kg
Warranty: 2 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting
