zero-1925-Asrock B450M PRO4-F

PRODUCT CODE:    ASMBB450MPRO4-F

MANUFACTURER:    ASROCK

CATEGORY:    Motherboards

£ 58.113 Last stock amount = 34

  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output:HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*, 1 M.2 (SATA3)
  • 7 x USB 3.1 Gen1 ( 1 x Type-C, 2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • ASRock Polychrome SYNC
    Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.           A latest reversible USB Type-C design that fits the connector either way.           Premium 42A Power Choke Compared to traditional chokes, ASRock’s premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.   Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.   High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.   2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.           Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Vist our online store for availability and uptodate pricing

Zero42 ONLINE SHOP

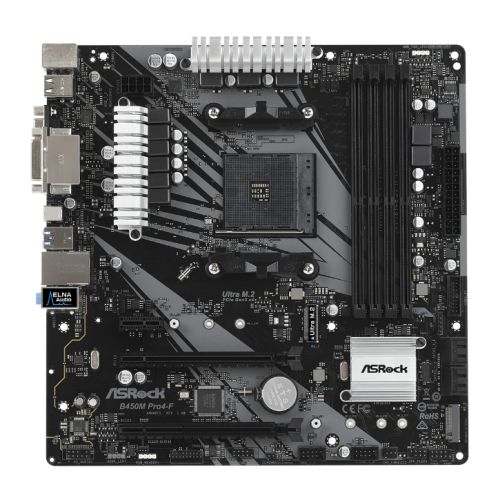

Photograph of zero-1925-Asrock B450M PRO4-F

  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output:HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*, 1 M.2 (SATA3)
  • 7 x USB 3.1 Gen1 ( 1 x Type-C, 2 Front, 4 Rear)
  • Realtek Gigabit LAN
  • ASRock Polychrome SYNC



AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.




Dual M.2 For SSD

Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.




Rule Your Own Lighting Way - Polychrome RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.




USB Type-C

A latest reversible USB Type-C design that fits the connector either way.




2oz Copper

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.




Super Alloy Motherboard

Premium 42A Power Choke
Compared to traditional chokes, ASRock’s premium 42A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.




Digi Power

This motherboard uses a next generation Hybrid Digi Power design to bring precise control and smooth power. With the ensured efficient and clean power delivery to the CPU, the stability and lifespan of motherboard is also greatly enhanced.




ELNA Audio Caps

Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Introducing the ASROCK B450M PRO4-F R2.0 Motherboard Are you looking for a reliable and feature packed motherboard that won't break the bank? Look no further than the ASROCK B450M PRO4-F R2.0 Motherboard. This micro ATX form factor motherboard is designed for the AMD B450 chipset, fitting AMD AM4 socket processors. Its 4 x DIMM DDR4 slots provide a maximum memory speed of 3200+ (OC) and a capacity of up to 64GB. The B450M PRO4-F offers users the ability to connect to multiple devices, with one VGA, one DVI-D, and one HDMI port. Storage options include four SATA III ports and one M.2 (2230/2242/2260/2280) and one Ultra M.2 (2242/2260/2280) PCIe port for fast and efficient data transfer. The board features support for AMD Quad CrossFire technology, allowing users to connect up to four GPUs for increased system performance. The board also supports AMD Radeon Vega series graphics integrated with Ryzen series APU. The B450M PRO4-F is equipped with 7.1 CH HD audio with content protection, powered by the Realtek ALC892 audio codec. For connecting peripherals, there are two USB 3.1 Gen1 Type-C ports at the rear, four USB 3.1 Gen1 ports (4 at the rear and 2 at mid-board), and two USB 2.0 ports (2 at the rear and 4 at mid-board). The board also features RAID 0, 1, 10 and one GB LAN port. It comes with a set of accessories including a quick installation guide, support CD, I/O shield, two SATA data cables, and two screws for the M.2 sockets. At just £58.11, the ASROCK B450M PRO4-F R2.0 is an excellent choice for those looking for an affordable, feature-packed motherboard to build their PC. With its robust design and reliable components, you can count on the B450M PRO4-F R2.0 to provide reliable performance for years to come.

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD B450
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: 3200+(OC) / 2933/2667/2400/2133 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • Graphics Ports: 1 x VGA
    1 x DVI-D
    1 x HDMI
  • Multi-GPU Support: AMD Quad CrossFireX Technology
  • PCI/PCI Express: 1 x PCIe 3.0 x16
    1 x PCIe 2.0 x16
    1 x PCIe 2.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2230/2242/2260/2280) - SATA
    1 x Ultra M.2 (2242/2260/2280) PCIe
  • RAID: "RIAD 0,1, 10"
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
  • USB Ports Supported: "2 x USB 3.1 Gen1 Type-C (at back)
    6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)"
  • Back Panel I/O Ports: 1 x PS/2 Mouse
    1 x PS/2 Keyboard
    1 x D-Sub
    1 x DVI-D
    1 x HDMI
    2 x USB 2.0
    1 x USB 3.1 Gen1 Type-C
    4 x USB 3.1 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x COM Port
    1 x TPM
    1 x Power LED and Speaker
    1 x RGB LED
    1 x Addressable LED
    1 x AMD Fan LED
    1 x CPU Fan
    2 x Chassis Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
    1 x AMD LED Fan USB
  • .: 1 x COM Port
    1 x TPM
    1 x Power LED and Speaker
    1 x RGB LED
    1 x Addressable LED
    1 x AMD Fan LED
    1 x CPU Fan
    2 x Chassis Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
    1 x AMD LED Fan USB
  • Accessories: Quick Installation Guide
    Support CD
    I/O Shield
    2 x SATA Data Cables
    2 x Screws for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.1000 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
