zero-1909-Asrock A320M PRO4-F

• AMD AM4 Socket
• Supports DDR4 3200+ (OC)
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCIe 2.0 x1
• AMD Quad CrossFireX™
• Graphics Output: HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)*, 1 M.2 (SATA3)
• 7 x USB 3.1 Gen1 (1 x Type-C, 2 Front, 4 Rear)
• Realtek Gigabit LAN

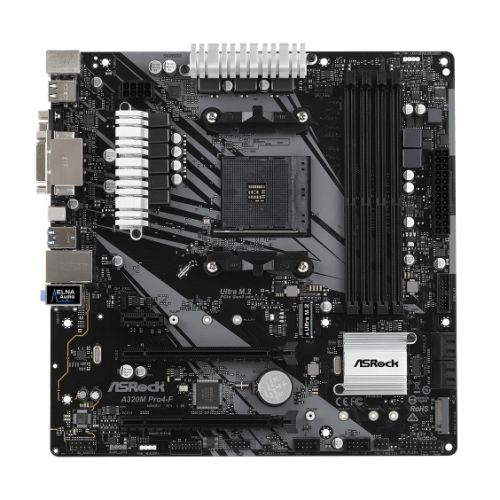

Introducing the ASRock A320M PRO4-F AMD Socket AM4 Motherboard Are you looking for a reliable motherboard to power your AMD processor? The ASRock A320M PRO4-F AMD Socket AM4 Motherboard is the perfect choice. This reliable and powerful micro ATX motherboard is designed to fit a range of AMD processors, including the latest AMD Ryzen CPUs. It's packed with features for maximum performance. With a powerful AMD A320 chipset, 4 DDR4 RAM Slots, and integrated AMD Radeon graphics, you'll be able to run your applications with ease. Additionally, it supports up to 64GB of RAM and has 1 x PCIe 3.0 x16 and 1 x PCIe 2.0 x16 slots. The A320M PRO4-F also has impressive storage support. It comes with 4 x SATA III, 1 x M.2 Socket (2242/2260/2280) - PCIe and 1 x M.2 Socket (2230/2242/2260/2280) - SATA. It supports RAID 0, 1, 10. Plus, it features 6 x USB 3.1 Gen1 (4 at back, 2 at mid-board) and 6 x USB 2.0 (2 at back, 4 at mid-board). The A320M PRO4-F has plenty of ports to connect all your peripherals. It includes 1 x PS/2 Mouse, 1 x PS/2 Keyboard, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0, 1 x USB 3.1 Gen1 Type-C, 4 x USB 3.1 Gen1, and 1 x RJ-45 LAN. You also get 7.1 Channel High Definition audio with content protection (Realtek ALC892 Audio Codec). It's priced at just £47.92, making it excellent value for money. What's more, it comes with a 2 year warranty for extra peace of mind. The ASRock A320M PRO4-F AMD Socket AM4 Motherboard is an excellent choice for powering your AMD processor. With its reliable performance, robust feature set, and impressive port selection, you can't go wrong with this great value motherboard.

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A320
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated AMD Radeon Graphics
• Graphics Ports: 1 x VGA
  1 x DVI-D
  1 x HDMI
• Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
• PCI/PCI Express: 1 x PCIe 3.0 x16
  1 x PCIe 2.0 x16
• Storage: 4 x SATA III
  1 x M.2 Socket (2242/2260/2280) - PCIe
  1 x M.2 Socket (2230/2242/2260/2280) - SATA
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• USB Ports Supported: "1 x USB 3.1 Gen1 Type-C (at back)
  6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 Mouse
  1 x PS/2 Keyboard
  1 x D-Sub
  1 x DVI-D
  1 x HDMI
  2 x USB 2.0
  1 x USB 3.1 Gen1 Type-C
  4 x USB 3.1 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x COM Port
  1 x TPM
  1 x Power LED and Speaker
  1 x RGB LED
  1 x Addressable LED
  1 x AMD Fan LED
  1 x CPU Fan
  2 x Chassis Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Audio
  1 x AMD LED Fan USB
• .: 2 x USB 2.0
  1 x USB 3.1 Gen1
• Accessories: "Quick Installation Guide, Support CD, I/O Shield
  2 x SATA Data Cables
  2 x Screws for M.2 Sockets"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.1600 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
