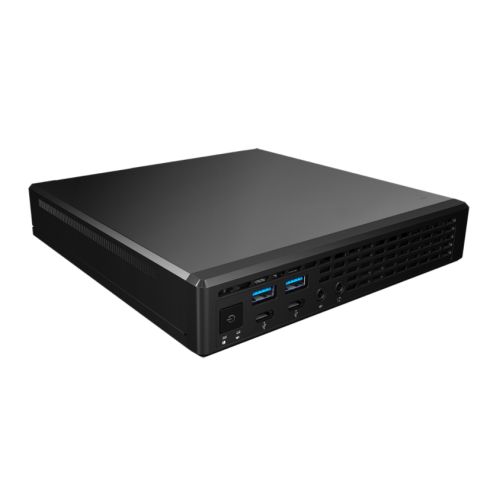

zero-0007-Asrock Jupiter H470 Mini Desktop Barebone PC

Asrock Jupiter H470 Mini Desktop


• Supports 10th/11th Gen Intel® Core™ Processors (LGA1200), up to 65W
• Supports DDR4-2933MHz Dual Channel Memory, up to 64GB.
• Integrated Cooling Solution
• 2 x USB 3.2 Gen1 Type-C
• 6 x USB 3.2 Gen1 Type-A
• Dual DisplayPort, HDMI
• Supports M.2 Wi-Fi ac/ax module - sold separately
• Supports M.2 (2280) PCIe Gen3 x4 NVMe / SATA 6Gb SSD
• 2.5" Hard Drive Bay
• 1 x RS232 (COM) Port
• Support Intel Optane™ Technology

Introducing the ASROCK Jupiter H470 Mini Desktop Barebone PC, the perfect choice for those looking for a powerful, affordable and aesthetically pleasing small form factor PC. With its slim design, it can fit into any environment and is equipped with features that make it a formidable computing solution. The ASROCK Jupiter H470 Mini Desktop Barebone PC supports 10th/11th Gen Intel Core Processors with a maximum TDP of 65W. It has an Intel H470 chipset and can support Intel UHD graphics. It comes with 2 x SO-DIMM DDR4-2933MHz slots with support for up to 64GB non-ECC RAM. There is 1 x SATA 6Gb 2.5" 7mm/9.5mm drive bay and 1 x 2280 PCIe Gen3 x4 & SATA 6Gb M.2 slot. The ASROCK Jupiter H470 also has an array of I/O ports including 2 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 1 x Mic-In, 1 x Speaker Out, 1 x HDMI, 2 x DisplayPort, 4 x USB 3.2 Gen1 Type-A, 1 x COM Port, 1 x RJ45 Gigabit LAN, 1 x DC-In Jack. In addition, it comes with a Realtek ALC233 sound chip with 1 x Head Phone with Mic Jack, 1 x Mic-In, 1 x Speaker Out and 1 x 2W Speaker. The ASROCK Jupiter H470 Mini Desktop Barebone PC is sold without a CPU, RAM, HDD or O/S, making it a great choice for those who prefer to customize their PC to their own preference. It comes with a 90W/19V Adapter, SATA Data with Power Cable, Screws Pack, Stand and VESA Mount as accessories. It has dimensions of 178 x 178 x 34 mm (1.0L) for the Barebone, and 170 x 170 (Proprietary) for the motherboard. It comes with a 3 year warranty. In conclusion, the ASROCK Jupiter H470 Mini Desktop Barebone PC is a powerful yet stylish and compact computing solution that is perfect for those looking for an affordable and customizable small form factor PC.

Description

Specification

• #Hide#Fully Built / Barebone: Barebone
• Chassis: Asrock Jupiter Mini Desktop
• Tower / Small Form Factor: Small Form Factor
• Processor: None
• Processor Details: Supports 10th/11th Gen Intel Core Processors (LGA1200)
  Max. TDP 65W

• Chipset: Intel H470
• Graphics: Supports Intel UHD Graphics
• #Hide#Processor: None
• Memory: None
• Memory Details: Supports 2 x SO-DIMM DDR4-2933MHz
  Max. 64GB
  non-ECC
• Hard Drive: None
• SSD Drive: None
• Optical Drive: None
• Supported Drives: 1 x SATA 6Gb 2.5"""" 7mm/9.5mm
  1 x 2280 PCIe Gen3 x4 & SATA 6Gb

• Operating System: No O/S
• Front I/O: 2 x USB 3.2 Gen1 Type-C
  2 x USB 3.2 Gen1 Type-A
  1 x Mic-In
  1 x Speaker Out
• Back I/O: 1 x HDMI
  2 x DisplayPort
  4 x USB 3.2 Gen1 Type-A
  1 x COM Port
  1 x RJ45 Gigabit LAN
  1 x DC-In Jack (Supports 19V Power Adapters)
• LAN: GB LAN
• Wireless: Wi-Fi Module sold separately
• Sound: 1 x Head Phone with Mic Jack
  1 x Mic-In
  1 x Speaker Out
  1 x 2W Speaker
  Realtek ALC233
• Expansion: 1 x 4-Pin Fan Connector
  1 x DC-In Jack (Supports 19V Power Adapters)
  1 x Internal Speaker Header
  1 x 2-Pin Chassis Intrusion Header
  1 x COM Port Header*
  1 x D-Sub Header*

  *COM Port shared with D-Sub
• Power Unit: 90W/19V Adapter
• Keyboard and Mouse: No
• Dimensions: Barebone: 178 x 178 x 34 mm (1.0L)
  Motherboard: 170 x 170 (Proprietary)
• Additional Features: See Overview
• Accessories: 1 x SATA Data with Power Cable
  1 x Screws Pack
  1 x Stand
  1 x VESA Mount
• Package Weight: 2.3500 kg
• Package Type: Retail
• Warranty: 3 Years
