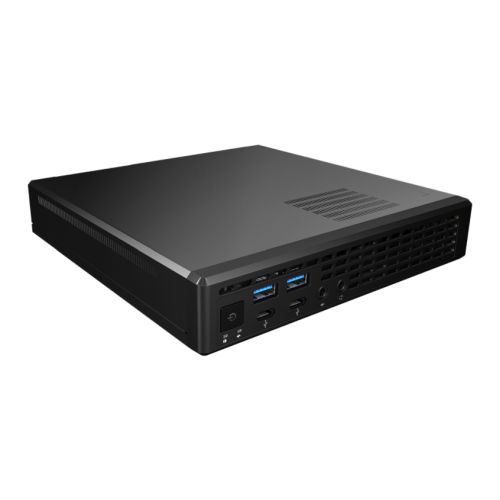

zero-0006-Asrock Jupiter H310 Mini Desktop Barebone PC

Jupiter mini Desktop - Small Form Factor Solution

• Supports Intel® 9th/8th Gen LGA1151 Processors, up to 65W
• USB 3.1 Gen1 Type-C Port
• DisplayPort, HDMI, D-Sub
• 1 x M.2 (2280) PCIe / SATA 6G Slot
• 1 x 2.5" HDD/SSD Tray
• 1 x M.2 (2230) Wi-Fi Slot
• 1 x RS232 (COM) Port

Introducing the Asrock Jupiter H310 Mini Desktop Barebone PC The Asrock Jupiter H310 is the perfect choice for those who want the power of a desktop computer in a smaller form factor. With its 1151 (H310) chipset, DDR4 SO-DIMM, 2.5" M.2, VGA, HDMI, DP, USB-C, COM Port and VESA design, the ASROCK H310 has all the features you need in a mini PC. The H310 comes with no CPU, RAM, HDD or operating system, so you can customize it to your specific needs. You can choose from Intel 9th/8th Gen LGA1151 Processors (Max. TDP 65W), up to 32GB of SO-DIMM DDR4 RAM, and a SATA 6Gb 2.5" 7mm/9.5mm Hard Drive or M.2 2280 PCIe Gen3 x4 & SATA 6Gb. The Asrock H310 has plenty of I/O ports for connecting your peripherals, including two USB 3.1 Type-C ports, two USB 3.1 Type-A ports, one Head Phone with Mic Jack, one Mic-In port, VGA, HDMI, DisplayPort, four USB 2.0 Type-A ports, RJ45, and one COM Port. It also comes with a 90W/19V Adapter and a 2W speaker. The Asrock H310 is designed for versatile and reliable computing, and it’s made to last, with a 3 year warranty. It’s the perfect mini desktop PC for home and office use. With its small form factor, advanced features, and competitive price point, the Asrock Jupiter H310 is a great choice for anyone looking for a mini desktop PC. It’s available now for £ 137.69.

Description

Specification

• #Hide#Fully Built / Barebone: Barebone
• Chassis: Asrock Jupiter Mini Desktop
• Tower / Small Form Factor: Small Form Factor
• Processor: None
• Processor Details: Supports Intel 9th/8th Gen LGA1151 Processors (Max. TDP 65W)
• Chipset: Intel H310
• Graphics: Supports Intel UHD Graphics
• #Hide#Processor: None
• Memory: None
• Memory Details: 2 x SO-DIMM Slots
  Supports DDR4 2666MHz
  Max. 32GB (non-ECC)
• Hard Drive: None
• SSD Drive: None
• Optical Drive: None
• Supported Drives: 1 x SATA 6Gb 2.5"""" 7mm/9.5mm Hard Drive
  M.2 2280 PCIe Gen3 x4 & SATA 6Gb

• Operating System: No O/S
• Front I/O: 2 x USB 3.1 Gen1 Type-C
  2 x USB 3.1 Gen1 Type-A
  1 x Head Phone with Mic Jack
  1 x Mic-In
• Back I/O: 1 x VGA
  1 x HDMI
  1 x DisplayPort
  4 x USB 2.0 Type-A
  1 x RJ45
  1 x COM Port
• LAN: 1 x RJ45 Gigabit LAN
  Realtek RTL8111H
• Wireless: 1 x M.2 (2230) Wi-Fi Slot (module sold separately)
• Sound: 1 x 2W Speaker
  Realtek ALC233
• Expansion: 1 x 4-Pin Fan Connector
  1 x DC-In Jack (Supports 19V Power Adapters)
  1 x Internal Speaker Header
  1 x 2-Pin Chassis Intrusion Header
  1 x COM Port Header
• Power Unit: 90W/19V Adapter
• Keyboard and Mouse: No
• Dimensions: Motherboard: 170 x 170mm (Proprietary)
  Barebone: 178 x 178 x 34mm (1.0L)
• Additional Features: See Overview
• Accessories: 1 x SATA Data with Power Cable
  1 x Screws Pack
  1 x Stand
  2 x Antenna
• Package Weight: 2.2000 kg
• Package Type: Retail
• Warranty: 3 Years
